P/N: U04104.125.0400 Key Specs
Item

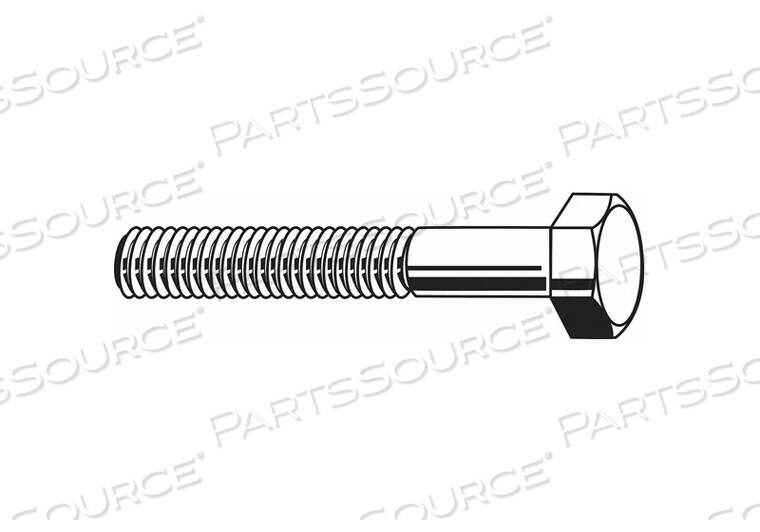

HHCS 1-1/4-7X4 STEEL GR 8 YZ
OEM
Fabory
OEM #
U04104.125.0400
Condition
New OEM Original
Returnable
No
Basic Material
Steel
Cap Screw Type
Hex Head Cap Screw
Diameter/Thread Size
1-1/4-7
Fastener Finish
Zinc Yellow
Fastener Industry Standards
ASME B18.21
Fastener Length
4 in
Fastener Thread Direction
Right Hand
Fastener Thread Style
Partially Threaded
Fastener Thread Type
UNC (Coarse)
Head Height
1-7/8 in
Head Type
Hex
Head Width
1-7/8 in
Material Grade
Grade 8
Min Thread Length
2-3/4 in
Proof Load
120,000 psi
Rockwell Hardness
C33 to C39
System of Measurement
Inch
Temperature Range
-58 Degrees to 302 Degrees F
Tensile Strength
150,000 psi
