P/N: THHQL32030 Key Specs
Item

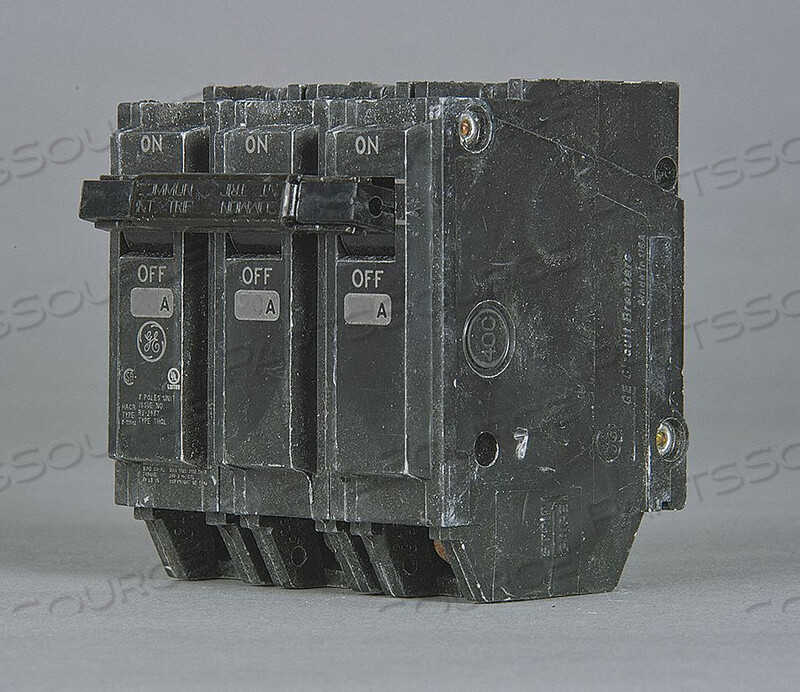

CIRCUIT BREAKER 30A PLUG IN 120/240V 3P
OEM
General Electric Company
OEM #
THHQL32030
Condition
New OEM Original
Returnable
No
AC Voltage Rating
120/240V AC
Amps
30
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Circuit Breaker Type
High Interrupting Capacity
Compatible Panelboard/Load Center Series
AQ
DC Voltage Rating
Not Rated
Depth
2.38 in
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Frame Size
THQ
Length
3.28 in
Max Air Rating
22kA at 120/240V AC
Max Wire Size
8 AWG
Min Wire Size
14 AWG
Number of Poles
3
Phase
3
Series
THHQL
Standards
UL Listed
Terminal Connection
Screw Clamp
Width
1 in
