P/N: TEYD3020B Key Specs
Item

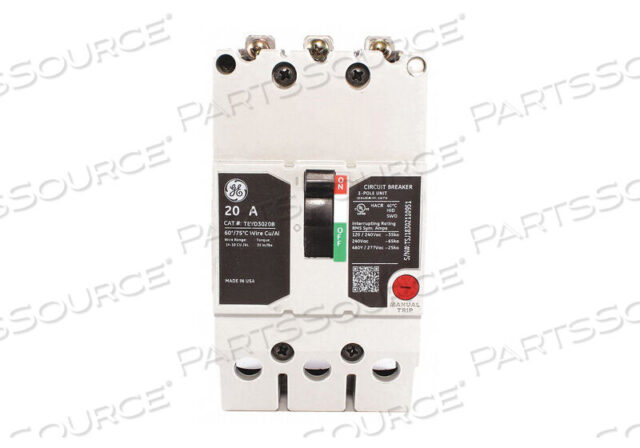

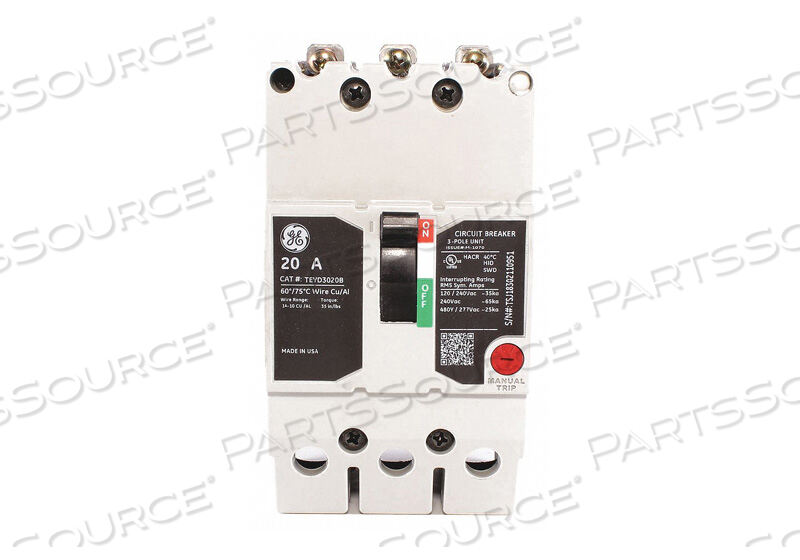

CIRCUIT BREAKER 20A 3P TEY 277/480VAC
OEM
General Electric Company
OEM #
TEYD3020B
Condition
New OEM Original
Returnable
No
AC Voltage Rating
277/480V AC
Amps
20 A
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Bolt On Panelboard
Circuit Breaker Type
Standard
DC Voltage Rating
250V DC
Depth
3 in
For Use With
GE AS Lighting Panels
Frame Size
125A/TEY
Height
5.2 in
Instantaneous Trip
Fixed
Max Air Rating
25kA at 277/480V AC
Max Wire Size
10 AWG
Min Wire Size
14 AWG
Number of Poles
3
Phase
3
Phase Connection
ABC
Series
TEY
Standards
UL
Terminal Connection
Lug
Trip Type
Thermal Magnetic
Width
3 in
