P/N: TD-200S Key Specs
Item

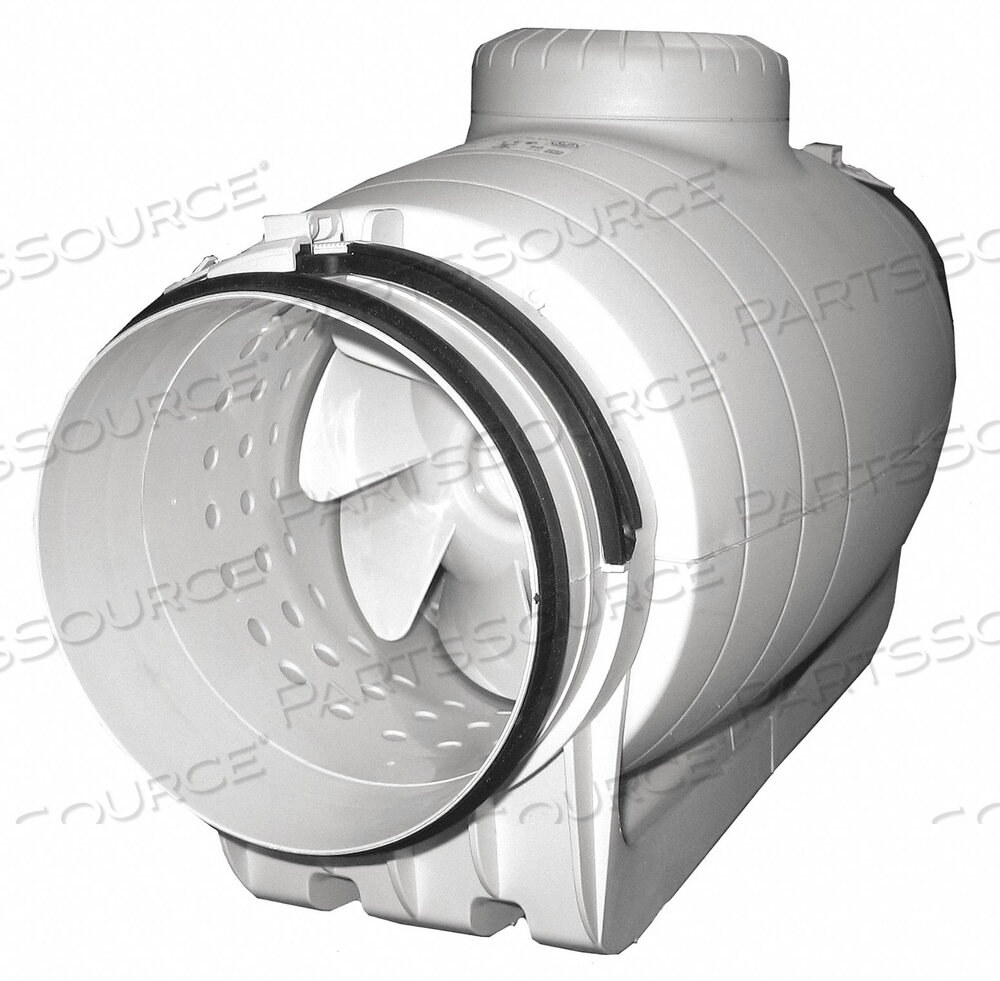

PLASTIC 10 D 10.4 H 22 W INLINE DUCT FAN
OEM
S&P USA Ventilation Systems
OEM #
TD-200S
Condition
New OEM Original
Returnable
No
Bearing Type
Ball
CFM @ 0.000-In. SP
530/409
CFM @ 0.125-In. SP
503/367
CFM @ 0.250-In. SP
472/333
CFM @ 0.375-In. SP
443/306
CFM @ 0.500-In. SP
415/271
CFM @ 0.750-In. SP
349/183
CFM @ 1.000-In. SP
204/46
Fits Duct Dia.
8 in
Flange Width
1 1/12 in
Green Certification or Other Recognition
ENERGY STAR(R) Certified
Height
10 3/8 in
Housing Dia.
10 3/8 in
Housing Finish
Off White
Housing Material
Thermoplastic
Hz
60
Includes
Mounting Bracket
Inlet and Outlet Dia.
8 in
Length
12 7/8 in
Max. Amps
1.01 A
Max. Inlet Temp.
140 Degrees F
Max. Wattage
122
Motor Enclosure
Totally Enclosed
Motor RPM
2200/2000
Mounting Position
Horizontal or Vertical
Number of Speeds
1
Phase
1
Speed Control
Yes
Standards
cULus, HVI Certified
Voltage
120V
Width
22 3/8 in
