P/N: SV20050STV Key Specs
Item

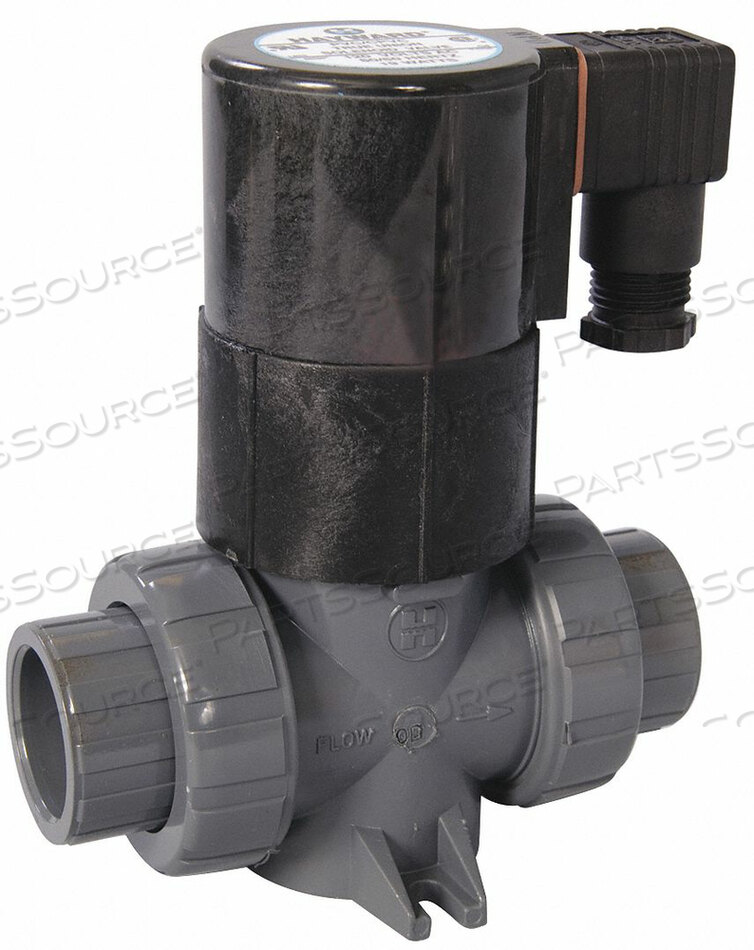

VALVE CPVC 2WAY/2POSITION NORMALLYCLOSED
OEM
Hayward
OEM #
SV20050STV
Condition
New OEM Original
Returnable
No
Body Material — Valves
CPVC
Coefficient of Volume
2.3
Coil Enclosure
Watertight
Coil Insulation Class
B
Electrical Connections
1/2 in Conduit
Environmental Rating — Valves
Corrosive, Indoor, Outdoor
Hz
50 to 60
Max Flow Rate
5 fps
Max Fluid Temperature
190 Degrees F
Max Operating Pressure Differential Light Oil
120 psi
Max Operating Pressure Differential Water
120 psi
Media — Valves
Acids, Bases, Salt Water, Water
Min Operating Pressure Differential
0 psi
NEMA Rating
4
Operation
Direct Acting
Orifice Diameter
3/64 in
Overall Height
6-5/16 in
Overall Length
5-5/16 in
Overall Width
3 in
Pipe Size — Valves
1/2 in
Safe Working Water Pressure
120 psi
Seal Material — Valves
FPM
Solenoid Valve Product Group
Plastic Solenoid Valve
Valve Configuration
Normally Closed
Valve Ways and Positions
2-Way/2-Position
Voltage
120V AC
