P/N: SUCFBL208-24C0FG1 Key Specs
Item

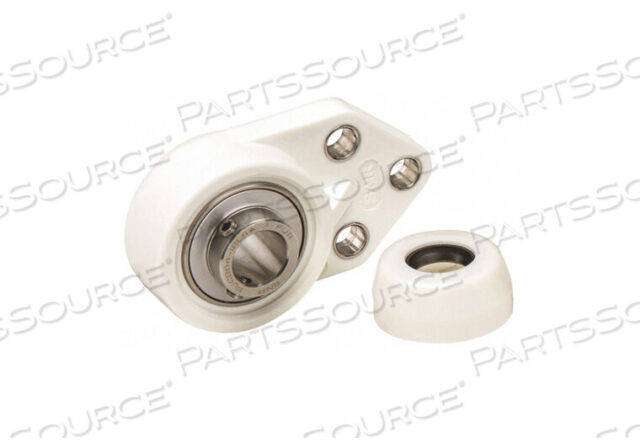

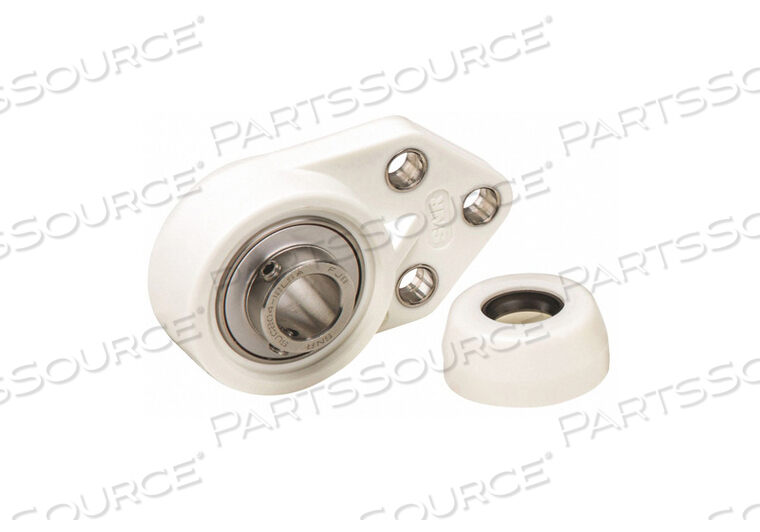

FLANGE BEARING 3-BOLT 1-1/2 BORE DIA
OEM
NTN
OEM #
SUCFBL208-24C0FG1
Condition
New OEM Original
Returnable
No
Bearing Housing Material Type
PBT
Bearing Insert Material
440C Stainless Steel
Bearing Insert Type
Ball
Bearing Lubrication
FDA/USDA-H1 Solid Grease
Bolt Hole Center-to-Center
2 in
Bolt Size
1/2 in
Bore Dia.
1 1/2 in
Dynamic Load Capacity
5,130 lb
Finish
Unfinished
Includes
(2) Open End Caps
Mounted Bearing Item
3-Bolt Flange Bearing
Overall Height
6 1/4 in
Overall Length
3 7/8 in
Overall Width
2 3/4 in
Series
FBL-FG1
Shaft Locking Type
Set Screw
Standards
NSF H1 Registered
Static Load Capacity
4,090 lb
Temp. Range
14 Degrees to 212 Degrees F
