P/N: SIU75-30-N5 Key Specs
Item

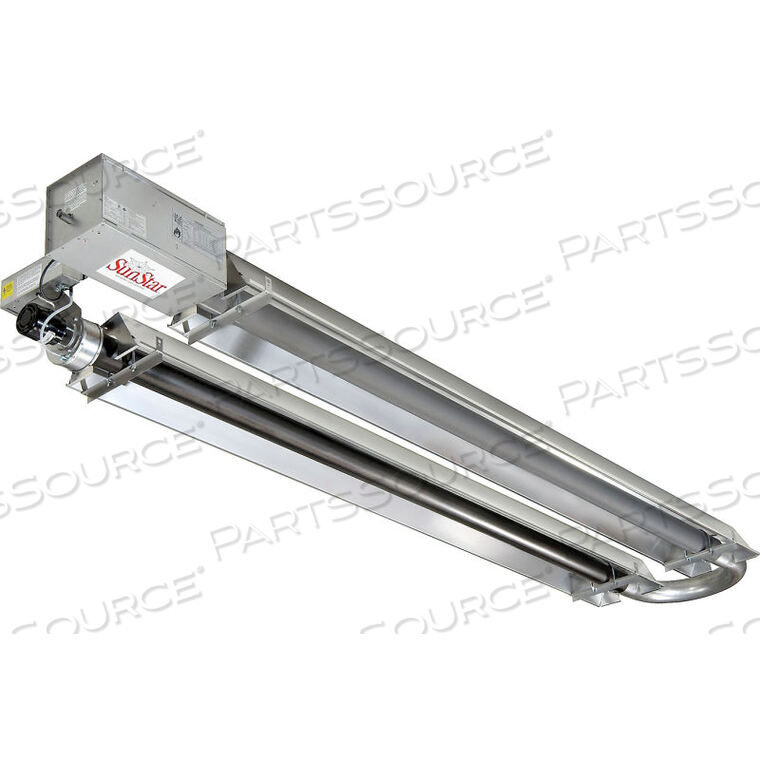

NATURAL GAS INFRARED HEATER U-TUBE VACUUM — — 75000 BTU
OEM
Sunstar Heating Products Inc
OEM #
SIU75-30-N5
Condition
New OEM Original
Returnable
No
Btu High
75000
Burner Pressure W.C. Inches
3-1/2
Construction
Cast Iron Burner / Aluminum Reflectors
Duct Size Inches
4
Fuel Type
Natural Gas
Gas Inlet Pressure Max. Water Column Inches
14
Gas Inlet Pressure Min. Water Column Inches
5
Height Inches
6-1/4
Ignition Type
Direct Spark
Length Feet
17-3/4
Limited Warranty Years
1
Manufacturer Part#
SIU75-30-N5
Min. Clearance Combustible At 45 Degree Angle Inch
Front 48, Rear 12, Ceiling 6, Below 60, End 30
Min. Clearance Combustibles At Horizontal Inch
Side 27, Ceiling 6, Below 60, End 30
Min. Mounting Height Feet At 45 Degree Angle
12
Min. Mounting Height Feet At Horizontal
13
Shape
U
Tube Construction
Hot Rolled Steel
Tube Length Feet
30
Type
Negative Pressure
Weight Lbs
145.6
Width Inches
31
