P/N: S250-1 Key Specs
Item

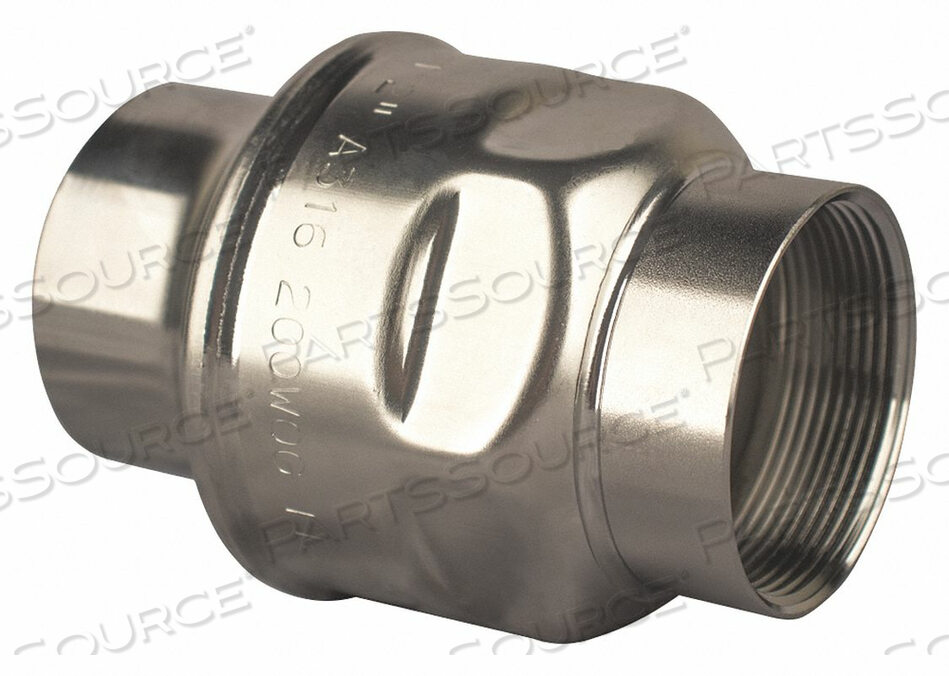

SPRING CHECK VALVE SS 1 FNPT
OEM
Bonomi
OEM #
S250-1
Condition
New OEM Original
Returnable
No
Application — Valves
General Purpose
Body Material — Valves
Stainless Steel
Cap to Inlet Center
1-13/32 in
Connection Type — Check Valves
FNPT x FNPT
Cracking Pressure — Check Valves
0.5 psi
Flow — Valves
22 gpm
Flow Design
Single
Hex Size
2 in
Item — Check Valves
Check Valve
Length
3-17/64 in
Max Steam Pressure — Valves
Not Rated
Max Temperature — Valves
302 Degrees F
Max Water Pressure — Valves
250 psi
Mechanism and Body Design
Inline Spring
Mounting Orientation — Check Valves
Horizontal, Vertical
Overall Height
2-3/32 in
Pipe or Tube Size — Check Valves
1 in
Seal Material — Check Valves
Viton
Seat Material — Check Valves
FKM
Spring Material — Check Valves
316 Stainless Steel
Standards
AISI 316
Width
1-13/16 in
