P/N: S-FM-10RB-4SL-IB Key Specs
Item

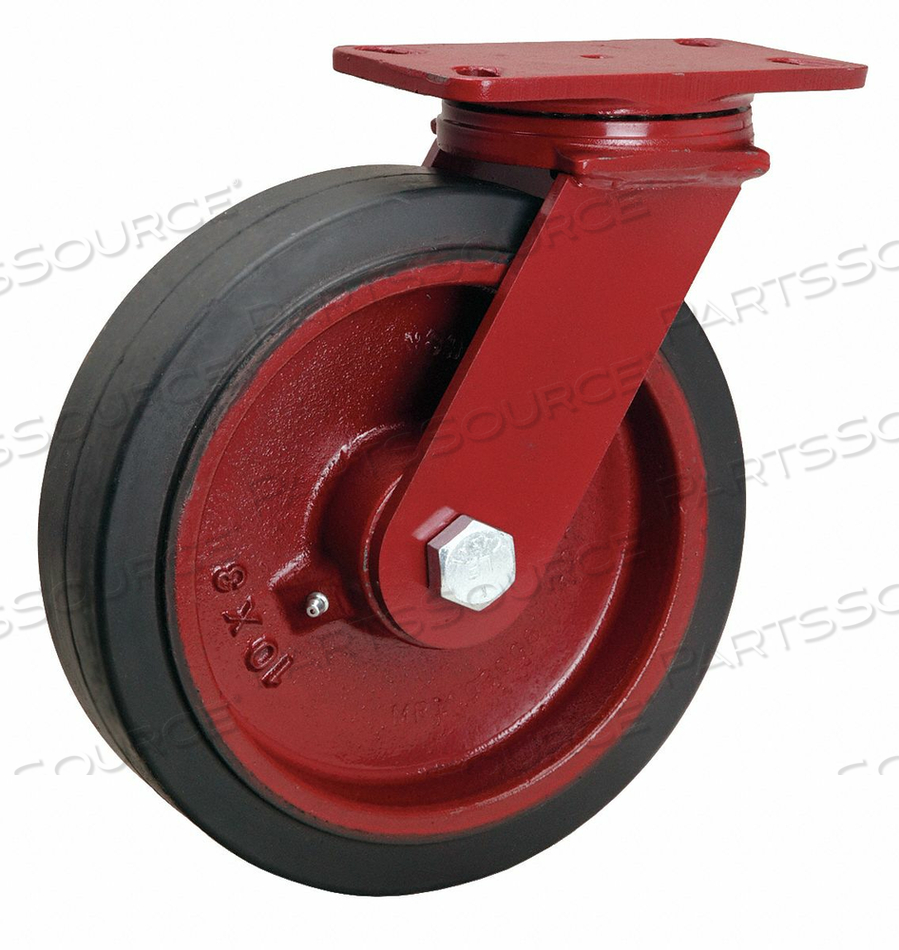

STANDARD PLATE CASTER SWIVEL 790 LB.
OEM
Hamilton
OEM #
S-FM-10RB-4SL-IB
Condition
New OEM Original
Returnable
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Type
Swivel Lock with Side Pedal Brake
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Core Color
Red
Frame Finish
Enamel
Includes
Spanner Bushing
Includes Thread Guards
No
Inside Bolt Hole Spacing
2-7/16 x 4-15/16 in
Load Rating
790 lb
Mounting Bolt Diameter
1/2 in
Mounting Height
11-1/2 in
Mounting Plate Bolt Hole Pattern
A
Mounting Plate Size
4-1/2 x 6 1/2 in
Non-Marking
No
Number of Mounting Holes
4
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Replacement Wheel
Mfr. No. W-1025-RB-3/4
Standards
ICWM
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Core Material
Cast Iron
Wheel Diameter
10 in
Wheel Width
2-1/2 in
Wheel/Tread Color
Black
Wheel/Tread Hardness
70 Shore A
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
