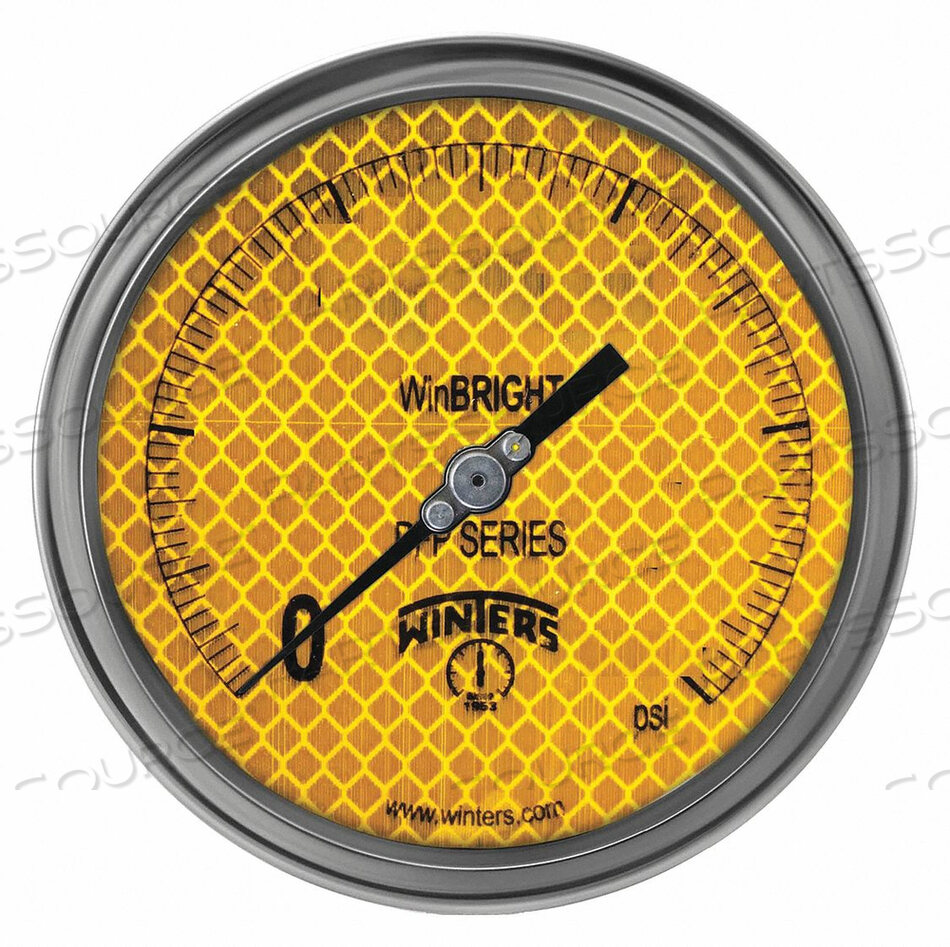

P/N: PFP610WBYG Key Specs
Item
GAUGE 4 DIAL SIZE MNPT CONNECTION
OEM
Winters Instruments
OEM #
PFP610WBYG
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Stainless Steel
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Brass
Basic Gauge Socket Material
Brass
Basic Gauge Wetted Parts
Brass
Calibration Certificate Included
No
Characteristics
Protects Against Vibration and Pulsation
For Use With
Hydraulic and Oil Field Equipment, Pumps, Compressors, Process Industries
Gauge Accuracy
+/-1.00%
Gauge Application
General Purpose
Gauge Case Color
Gray
Gauge Case Material
304 Stainless Steel
Gauge Connection Location
Bottom
Gauge Connection Size
1/4 in
Gauge Connection Type
MNPT
Gauge Filled With
Glycerin
Gauge Lens Material
Polycarbonate
Gauge Nominal Dial Size
4 in
Gauge Panel Mountable
No
Gauge Primary Range Values
0 to 400
Gauge Sensor Material
Brass
Gauge Socket Material
Brass
Gauge Special Options
Heavy Duty
Includes
Bayonet Ring, Liquid Filled Case, Reflective Fluorescent Yellow-Green Dial, Restrictor Screw
Liquid Filled
Yes
Manufacturers Warranty Length
5 yr
Operating Temperature Range
-4 Degrees to 150 Degrees F
Pressure and Vacuum Gauge Type
Pressure Gauge
Series
PFP
