P/N: PEM203LF Key Specs
Item

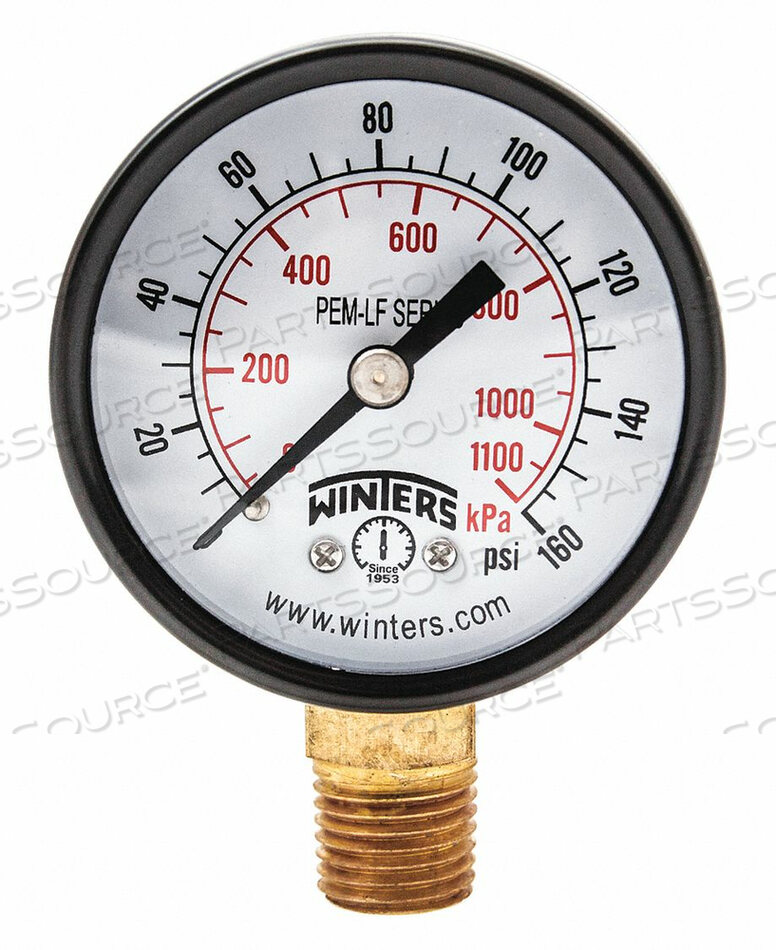

J1379 GAUGE PRESSURE 0 TO 160 PSI 2 IN.
OEM
Winters Instruments
OEM #
PEM203LF
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Steel
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Bronze
Basic Gauge Socket Material
Brass
Basic Gauge Wetted Parts
Brass / Bronze
Calibration Certificate Included
No
Characteristics
Friction Bezel Ring
For Use With
Plumbing, Heating, Air Conditioning, Pneumatic, Water Tanks, Air Compressors
Gauge Accuracy
+/-3-2-3%
Gauge Application
Lead Free
Gauge Case Color
Black
Gauge Case Material
Steel
Gauge Connection Location
Bottom
Gauge Connection Size
1/4 in
Gauge Connection Type
MNPT
Gauge Lens Material
Polycarbonate
Gauge Nominal Dial Size
2 in
Gauge Panel Mountable
No
Gauge Primary Range Units
psi
Gauge Primary Range Values
0 to 160
Gauge Sensor Material
Lead Free Phosphor Bronze
Gauge Socket Material
Brass
Liquid Filled
No
Manufacturers Warranty Length
5 yr
NSF Certified
Yes
Operating Temperature Range
-40 Degrees to 150 Degrees F
Pressure and Vacuum Gauge Type
Pressure Gauge
Series
PEM-LF
