P/N: PCMR32-8-7-A Key Specs
Item

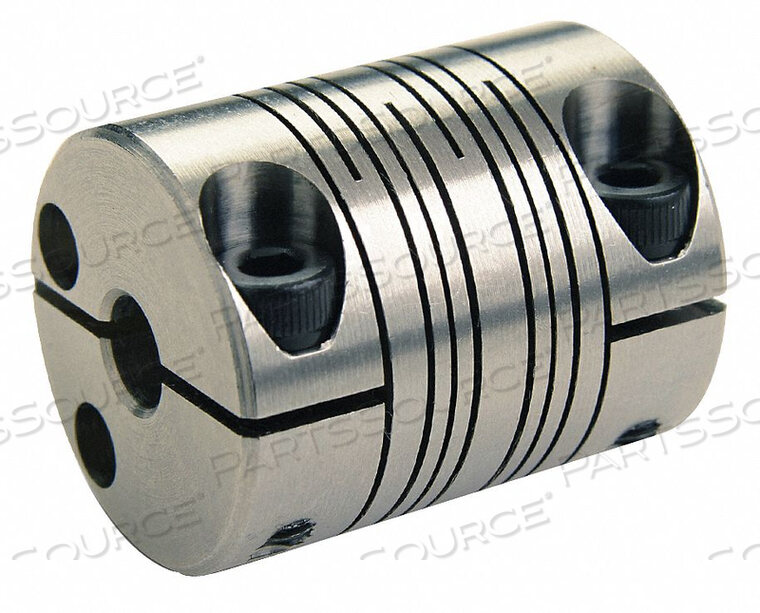

MOTIONCONTROL COUPLING CLAMP 8MMX7MM
OEM
Ruland Manufacturing Inc.
OEM #
PCMR32-8-7-A
Condition
New OEM Original
Returnable
No
Bore Dia.
8mm x 7mm
Clearance Dia. (In.)
1.25 in
Clearance Dia. (mm)
31.8
Finish
Bright
Item — Motion Control Couplings
Motion Control Coupling
Length through Bore
17.02 mm
Material — Couplings
Aluminum
Max. Angular Misalignment
3 Degrees
Max. Axial Misalignment (In.)
+/-0.01
Max. Bore (mm)
8 mm
Max. Parallel Misalignment (In.)
0.015 in
Max. RPM
6,000 RPM
Max. Temp.
225 Degrees F
Min. Bore (mm)
7
Outside Dia.
31.8 mm
Overall Length
38.1 mm
Rated Torque
64 in-lb
Screw Size
M4
Screw Type
Cap Screw
Shaft Locking Type — Couplings
1 Piece Clamp
Size
PCMR32
Torsional Stiffness (Deg./In.-Lbs.)
0.06
