P/N: M9F42305 Key Specs
Item

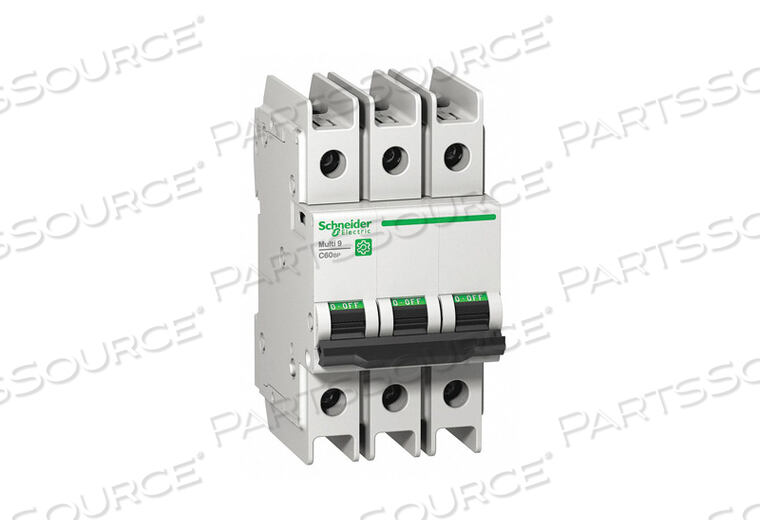

MINI CIRCUIT BREAKER 5A 3P 240/277/480V
OEM
APC / American Power Conversion
OEM #
M9F42305
Condition
New OEM Original
Returnable
No
AC Voltage Rating
240/277/480V AC
Amps
5 A
Application
Branch Circuit Protection
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
DIN Rail
Curve Type
C
DC Voltage Rating
Not Rated
Depth
2.83 in
Frame Size
63A/C60BP
Length
4.06 in
Max Air Rating
14kA at 120/240V AC
Max Operating Temperature
158 Degrees F
Max Wire Size
8 AWG
Meets UL Type
UL 489
Min Operating Temperature
-22 Degrees F
Min Wire Size
18 AWG
Number of Poles
3
Phase
3
Series
C60BP
Standards
CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489
Terminal Connection
Screw Clamp
Trip Type
Thermal Magnetic
Width
2.13 in
