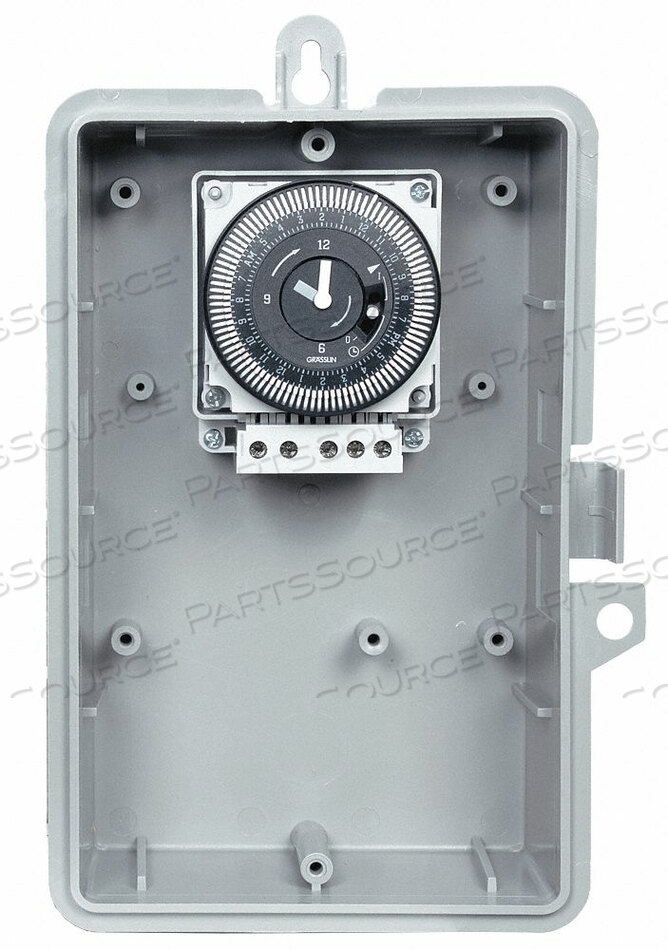

P/N: GMXST-I-120 Key Specs
Item
120V TIMER
OEM
Intermatic
OEM #
GMXST-I-120
Condition
New OEM Original
Returnable
No
Amps
21 A
Contact Form
SPDT
Contact HP @ 120V
1 hp
Contact HP @ 240V
2 hp
Day Skipper
No
Depth
4-5/16 in
Description/Special Features
True Clock Face
Enclosure Type
Polycarbonate
Finish
Gray
Height
11-3/4 in
Max On/Off Cycles
48
Max Time Setting
23 hr 45 min
Min Time Setting
15 min
Mount
Surface
NEMA Rating
1
Nominal Max Time Setting
24 hr
Number of Poles
2
Number of Trippers Included
96
Operating Temperature
-40 Degrees to 185 Degrees F
Standards
cULus
Type
24-Hour
Voltage
120V AC
Width
7-5/16 in
