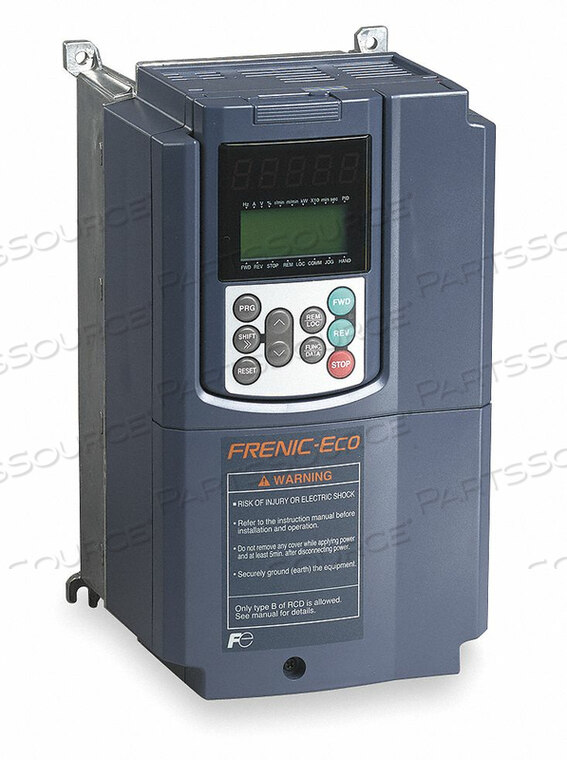

P/N: FRN005G1S-2U Key Specs
Item
VARIABLE FREQUENCY DRIVE 5 HP 200-230V
OEM
Fuji Electric
OEM #
FRN005G1S-2U
Condition
New OEM Original
Returnable
No
Accepts Input Control Signal
4 to 20mA and Digital, 5V DC, Analog 0-10V DC
Adjustable Acceleration Time
0 to 6000 sec
Adjustable Deceleration Time
0 to 6000 sec
Control Method
V/F, Dynamic Torque Vector, V/F Control with Speed Sensor or Dynamic Torque Control with Speed Sensor, Vector Control without Speed Sensor, Vector Control with Speed Sensor and Optional PG Card Mounted
Control Type
Keypad and Terminal
Depth
5.71 in
Digital Readout
Yes
Display Type
LCD Monitor and Green Run Indicator
Displays
LCD Monitor & Green Run Indicator
Dynamic Braking
Built In Braking Unit and Resistor
Enclosure
Open
For Use With
General Purpose and Inverter Duty 3-Phase Motors
Height
10.24 in
Input Frequency
120 Hz
Input Phase AC
1 or 3
Input Voltage
240V AC
Key Pad Lockout
Yes
Max HP
5 hp
Max Output Amps
18 A
Output Frequency Range
0 to 500 Hz
Output Phase AC
3
Output Voltage
240V AC
Protection
Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.
Standards
CE and RoHS Directives, cUL and US Listed
Start/Stop Control
Keypad and Terminal
Starting Torque
200%
Torque @ 1 Hz
200 %
Width
5.91 in
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
