P/N: FCMR25-11-10-SS Key Specs
Item

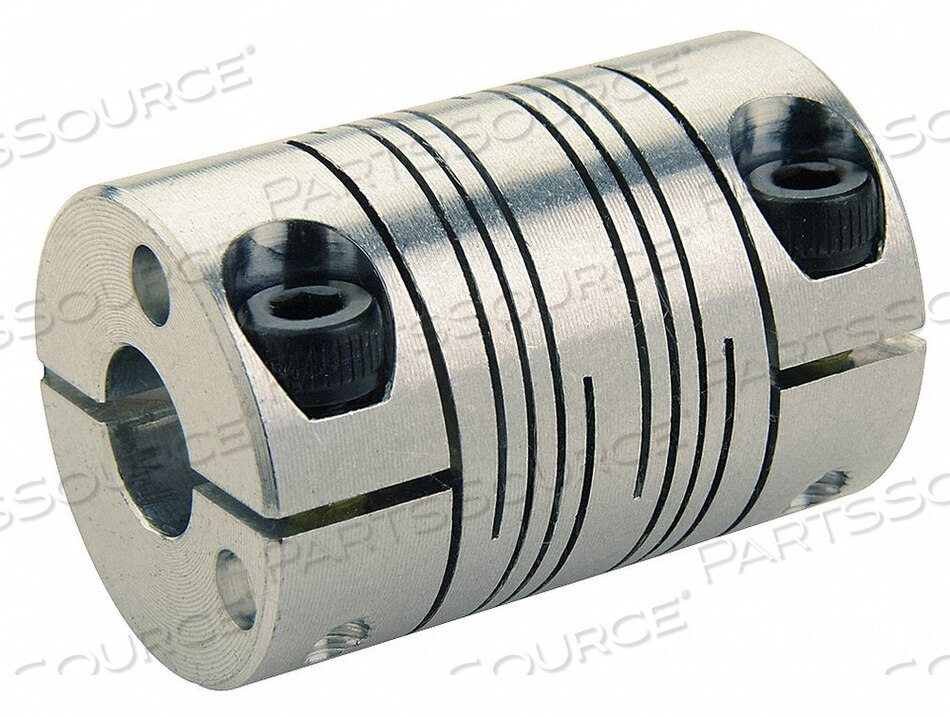

MOTIONCONTROL COUPLING CLAMP 11MMX10MM
OEM
Ruland Manufacturing Inc.
OEM #
FCMR25-11-10-SS
Condition
New OEM Original
Returnable
No
Bore Dia.
11mm x 10mm
Clearance Dia. (In.)
1.117 in
Clearance Dia. (mm)
28.37
Finish
Bright
Item — Motion Control Couplings
Motion Control Coupling
Length through Bore
17.87 mm
Material — Couplings
Stainless Steel
Max. Angular Misalignment
3 Degrees
Max. Axial Misalignment (In.)
+/-0.01
Max. Bore (mm)
11 mm
Max. Parallel Misalignment (In.)
0.015 in
Max. RPM
6,000 RPM
Max. Temp.
350 Degrees F
Min. Bore (mm)
10
Outside Dia.
25.4 mm
Overall Length
38.1 mm
Rated Torque
39 in-lb
Screw Size
M4
Screw Type
Cap Screw
Shaft Locking Type — Couplings
1 Piece Clamp
Size
FCMR25
Torsional Stiffness (Deg./In.-Lbs.)
0.084
