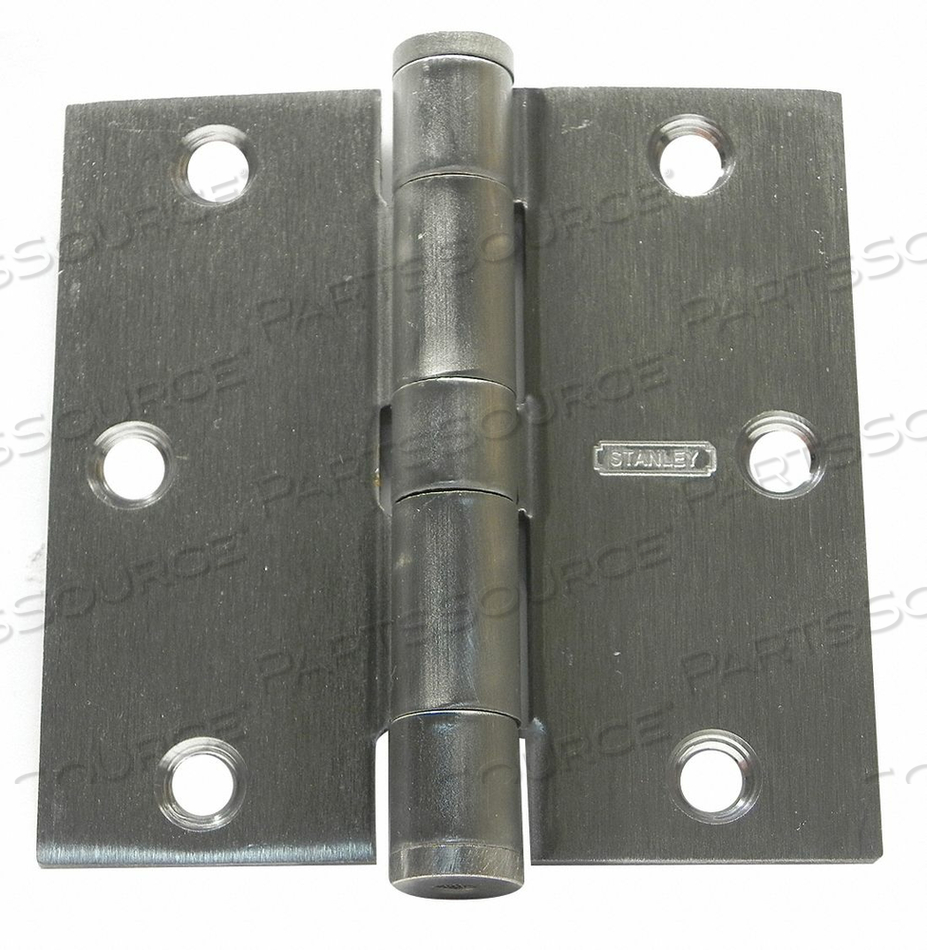

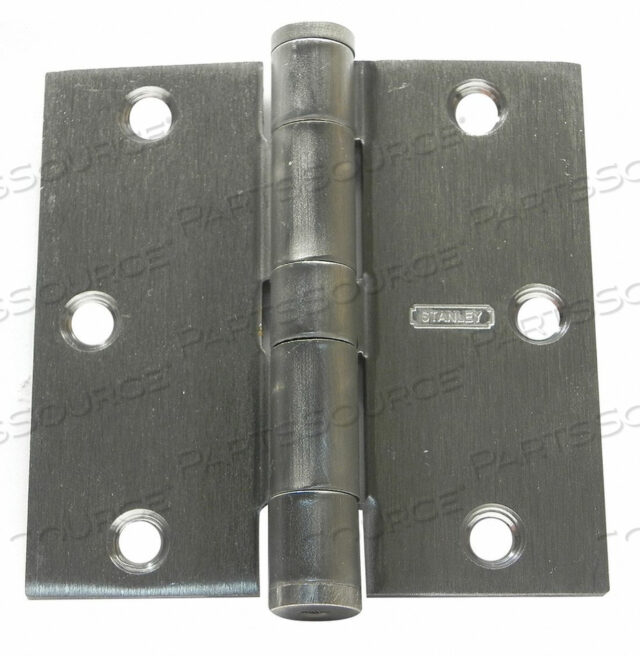

P/N: F191 4 5X4 5 DOOR HINGE 32D STS Key Specs
Item
TEMPLATE HINGE REMOVABLE NATURAL
OEM
Stanley
OEM #
F191 4 5X4 5 DOOR HINGE 32D STS
Condition
New OEM Original
Returnable
No
Bearing Type
Plain
Corners
Square
Door Leaf Height
4-1/2 in
Door Leaf Thickness
0.134 in
Door Leaf Width
2 in
Finish
Satin Stainless Steel
Frame Leaf Height
4-1/2 in
Frame Leaf Thickness
0.134 in
Frame Leaf Width
2 in
Hardware
Included
Holes
With
Holes per Leaf
4
Ligature Resistant
No
Load Capacity
75 lb
Material
Stainless Steel
Mounting
Full Mortise
Orientation
Non Handed
Pin Diameter
5/16 in
Pin Material
Stainless Steel
Pin Type
Removable
Range of Motion
270 Degrees
Required Door Thickness
1-3/8 in
Standards
ANSI/BHMA
