P/N: F-PUMP Key Specs
Item

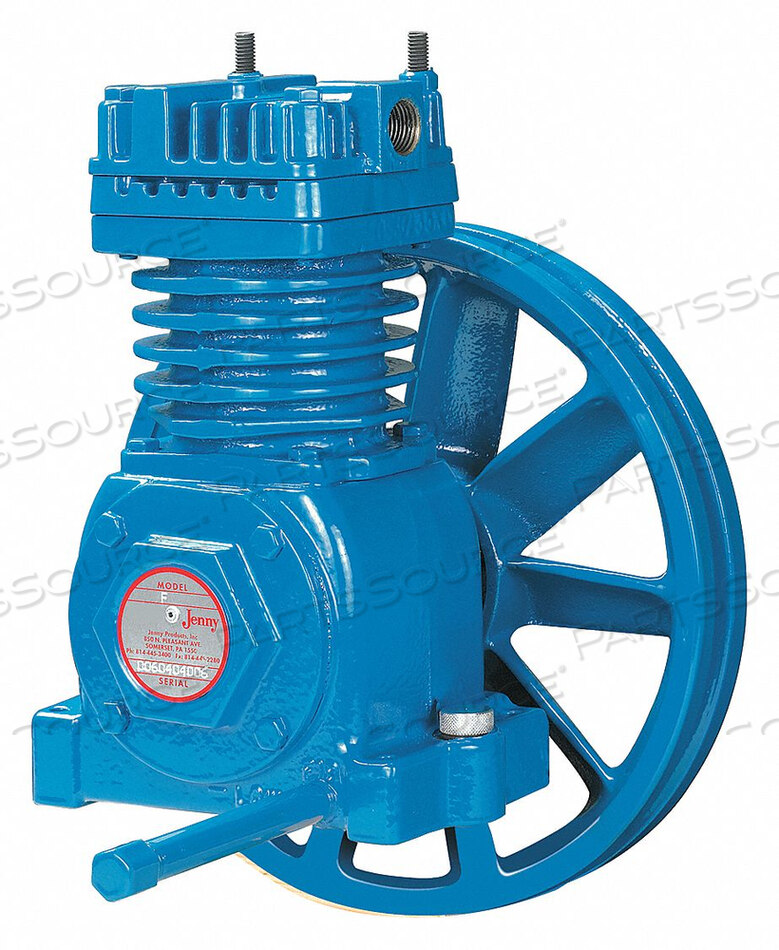

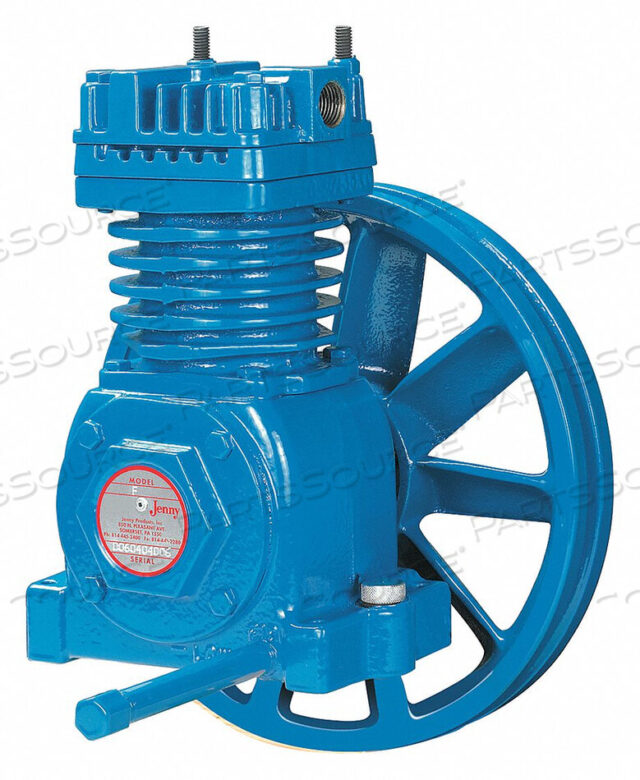

AIR COMPRESSOR PUMP 1 STAGE 1 HP
OEM
Jenny
OEM #
F-PUMP
Condition
New OEM Original
Returnable
No
Bore Dia.
2 1/2 in
Construction
Cast Iron
Finish
Powder Coated
Flywheel Dia.
10 1/8 in
Flywheel Included
Yes
Free Air CFM @ Max. Pressure
2.1
Groove Quantity
1
Groove Section
A
HP
1/3 hp, 1 hp
Lubrication Type
Synthetic Oil
Max. Pressure
150 psi
Mounting Pattern
5-9/16 in W x 3-3/8 in D
NPT Outlet
1/2 in
Number of Cylinders
1
Number of Stages
1
Oil Capacity
8 oz
Overall Depth
7 3/4 in
Overall Height
13 1/4 in
Overall Width
10 3/8 in
Pump RPM
1,200
Rotation
CW
Sheave Size @ 1725 RPM
6 21/64 in
Stroke Length
1 3/4 in
Valve Material
Stainless Steel
Valve Type
Disc
