P/N: EM3768T Key Specs
Item

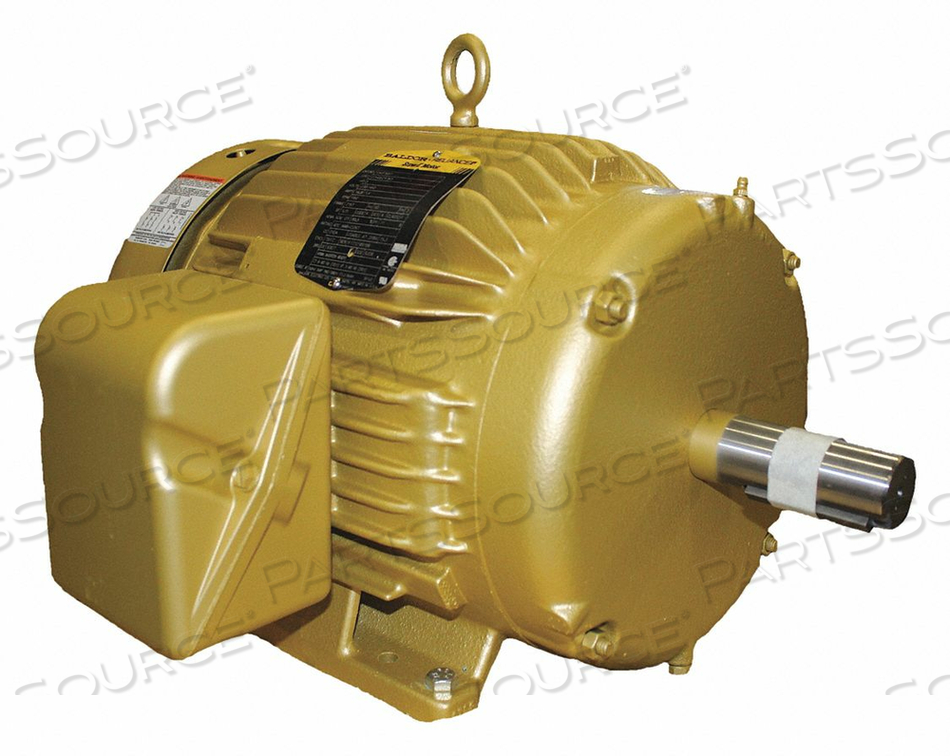

MOTOR 3-PH 5 HP 1160 RPM 215T TEFC
OEM
BALDOR
OEM #
EM3768T
Condition
New OEM Original
Returnable
No
CC Number
CC031A
Duty
Continuous
Frame
215T
Full Load Amps
15.3-14.8/7.4
HP
5 hp
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
15 1/16 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1160
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
18-7/16 in
Phase
3
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CSA, UL
Voltage
208-230/460
