Name: OEM#: EHM2531TMOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 4046M, OPSB, F1 by BALDOR
SKU: HomeBALDOREHM2531T
Availability: InStock

OEM#: EHM2531TMOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 4046M, OPSB, F1 by BALDOR

794 250 ₽

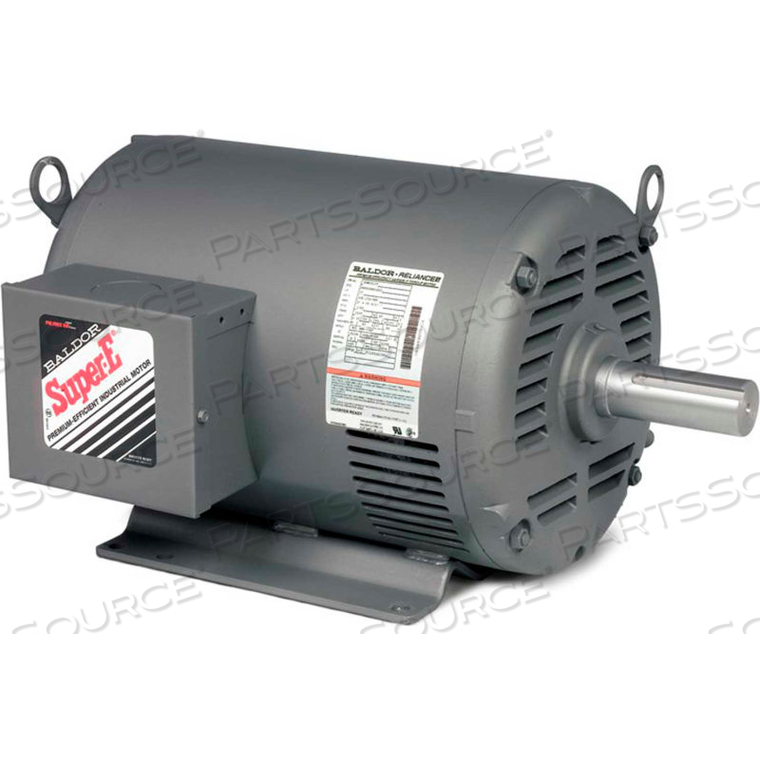

Baldor-Reliance Motor, 25HP,1770RPM,3PH,60HZ,284T,4046M,OPSB,F1Features:Heavy gauge steel frame constructionBall bearingsGrease reduced vibrationSuitable for mounting in any positionEHM models meet NEMA Premium® efficiency and inverter-ready3 year warrantyHM models meet EPAct efficienciesTypical Applications:Heating, ventilation and air conditioning fans and blowers

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: HomeBALDOREHM2531T TME арт.: HomeBALDOREHM2531T

BALDOR

P/N: EHM2531T Key Specs

Item

MOTOR, 25HP, 1770RPM, 3PH, 60HZ, 284T, 4046M, OPSB, F1

OEM

BALDOR

OEM #

EHM2531T

Condition

New OEM Original

Returnable

Ambient Temp C

Approvals Or Certifications

CSA, UR

Bearing Type

Ball

Design Code

Drive End Bearing Size

6312

Drive End Flange

Standard

Duty

Continuous

Enclosure

OPSB

Enclosure Type

Open/Drip Proof

Fl Amps

58/29

Fl Efficiency

93.6

Frame

284T

Frame Size

284T

Full Load Amps

64.0/60.0/30.0

Height Inches

19.5

Hertz

Horsepower

Insulation Class

Is_Motor

Yes

Length Inches

0.5

Length Less Shaft Inches

Motor Rpm 60Hz

1760

Mounting

Rigid

Opposite End Bearing

6309

Opposite End Bearing Size

6309

Overall Length

25.06

Phase

Poles

Rated Rpm

1760

Rotation

CCW/CW

Rpm Range

1701-1800

Service Factor

1.15

Shaft Diameter

1.875

Shaft Diameter Inches

1.625

Speeds

Thermal Protection

None

Voltage

230/460

Weight Lbs

345

Width Inches

19.5
