P/N: D4C1620 Key Specs
Item

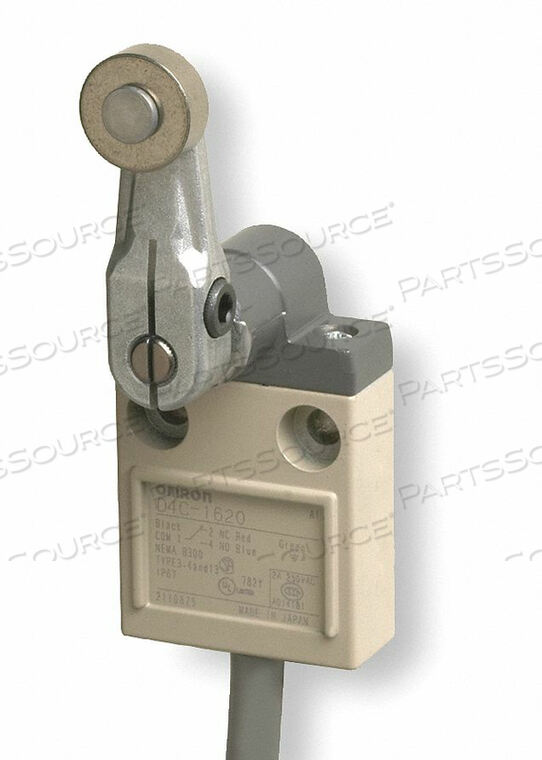

MINIATURE LIMIT SWITCH
OEM
Omron — Electronic Division
OEM #
D4C1620
Condition
New OEM Original
Returnable
No
AC Contact Rating — Limit Switch
5A @ 240V
Actuator Length — Limit Switch
1.5 in
Actuator Location — Limit Switch
Side
Actuator Style — Limit Switch
Roller Lever, Rotary
Arm Material
Aluminum
Arm Width
0.63 in
Basic Actuator Style — Limit Switch
Rotary
Body Depth — Limit Switch
0.63 in
Body Height — Limit Switch
2.13 in
Body Material
Aluminum
Body Style — Limit Switch
Miniature
Body Width — Limit Switch
1.33 in
Boot Sealed Actuator — Limit Switch
No
Contact Form- Switches
SPDT
DC Contact Rating — Limit Switch
Not Rated
Electrical Connection
3m Cable, SJT
IP Rating
67
Limit Switch Style
General Purpose Limit Switch
Mounting — Limit Switch
Surface
Mounting Hole — Limit Switch
(2) 0.2 in dia
Mounting Hole Pattern — Limit Switch
2 Hole Horizontal
Mounting Hole Spacing — Limit Switch
0.98 in
Movement
CCW, CW
NEMA Rating
13, 3, 4
Operating Force
5.7 N-m
Operating Temperature Range
-14 Degrees to 158 Degrees F
Roller Diameter
0.69 in
Roller Material
Stainless Steel
Roller Width
0.28 in
Series
D4C
Standards
CE, CSA, UL
Stem Thread — Limit Switch
No Stem
Travel
Total Travel 38 Degrees
