P/N: BZE6-2RQ2 Key Specs
Item

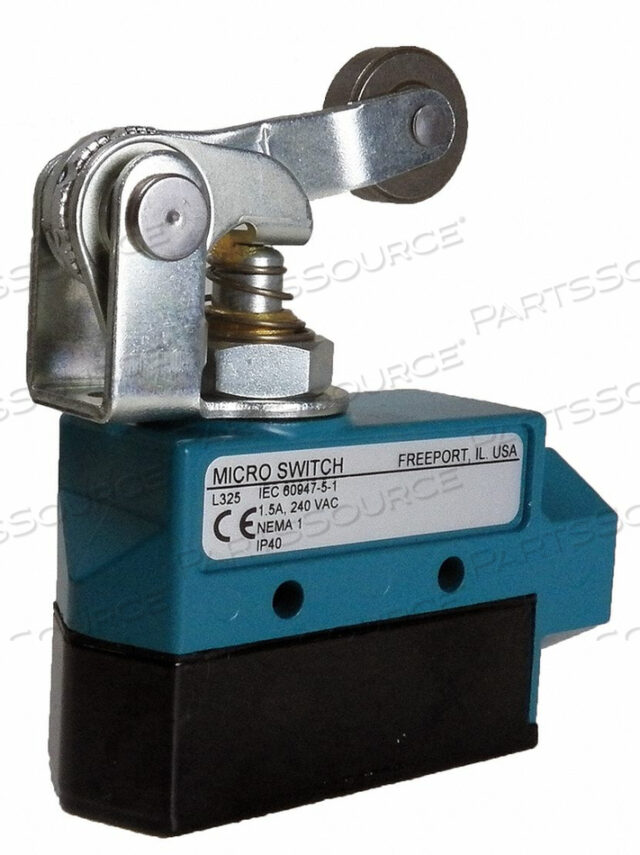

ENCLOSED LIMIT SWITCH
OEM
Honeywell
OEM #
BZE6-2RQ2
Condition
New OEM Original
Returnable
No
AC Contact Rating — Limit Switch
15A @ 600V
Actuator Length — Limit Switch
0.91 in
Actuator Location — Limit Switch
Top
Actuator Style — Limit Switch
Plunger, Roller Lever
Arm Material
Steel
Basic Actuator Style — Limit Switch
Plunger
Body Depth — Limit Switch
1 in
Body Height — Limit Switch
1.75 in
Body Material
Zinc Die Cast
Body Style — Limit Switch
Miniature
Body Width — Limit Switch
3.04 in
Boot Sealed Actuator — Limit Switch
No
Contact Form- Switches
1NC/1NO
DC Contact Rating — Limit Switch
2A @ 250V
Electrical Connection
Screw Terminals
IP Rating
66
Limit Switch Style
General Purpose Limit Switch
Mounting — Limit Switch
Surface
Mounting Hole — Limit Switch
(2) 0.22 in dia
Mounting Hole Pattern — Limit Switch
2 Hole Horizontal
Mounting Hole Spacing — Limit Switch
1 in
Movement
Release Force 6 oz min
NEMA Rating
1
Operating Force
10 oz to 18 oz
Operating Temperature Range
-25 Degrees to 160 Degrees F
Roller Diameter
0.75 in
Roller Material
Steel
Roller Width
0.25 in
Series
BZ
Standards
CSA, UL
Stem Thread — Limit Switch
No Stem
Travel
Differential Travel 0.006 in, Maximum Pretravel 0.188 in, Minimum Over Travel 0.219 in
Wiring Entry
1/2 in NPT
