P/N: ARP-5/8 Key Specs
Item

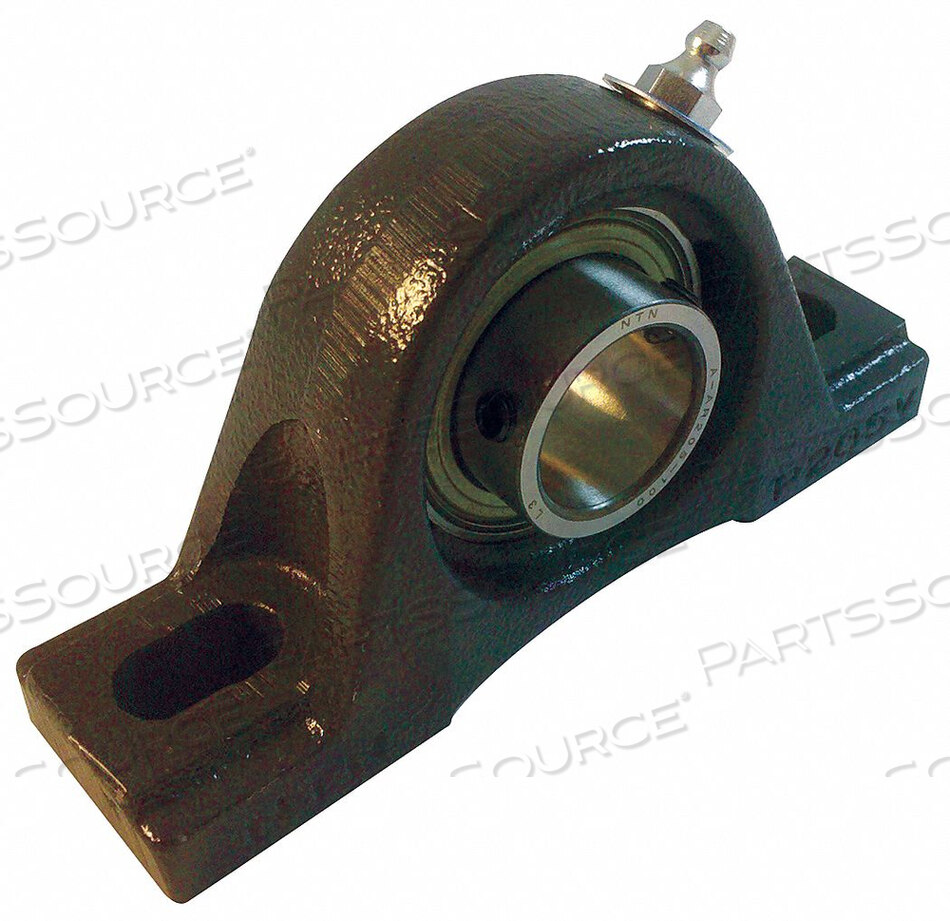

PILLOW BLOCK BEARING BALL 5/8 BORE
OEM
NTN
OEM #
ARP-5/8
Condition
New OEM Original
Returnable
No
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Shell Alvania #3 or NLGI #3 Equivalent
Bolt Hole Center-to-Center
3 5/8 in
Bolt Size
3/8 in
Bore Dia.
5/8 in
Dynamic Load Capacity
3,150 lb
Finish
Painted
Mounted Bearing Item
Pillow Block Bearing
Mounting Surface to Shaft Center
1 3/16 in
Number of Bolts
2
Overall Height
2 7/16 in
Overall Length
5 in
Overall Width
1 1/2 in
Series
Light Duty
Shaft Locking Type
Set Screw
Static Load Capacity
1,770 lb
Temp. Range
-20 Degrees to 250 Degrees F
