P/N: 9108KDD Key Specs
Item

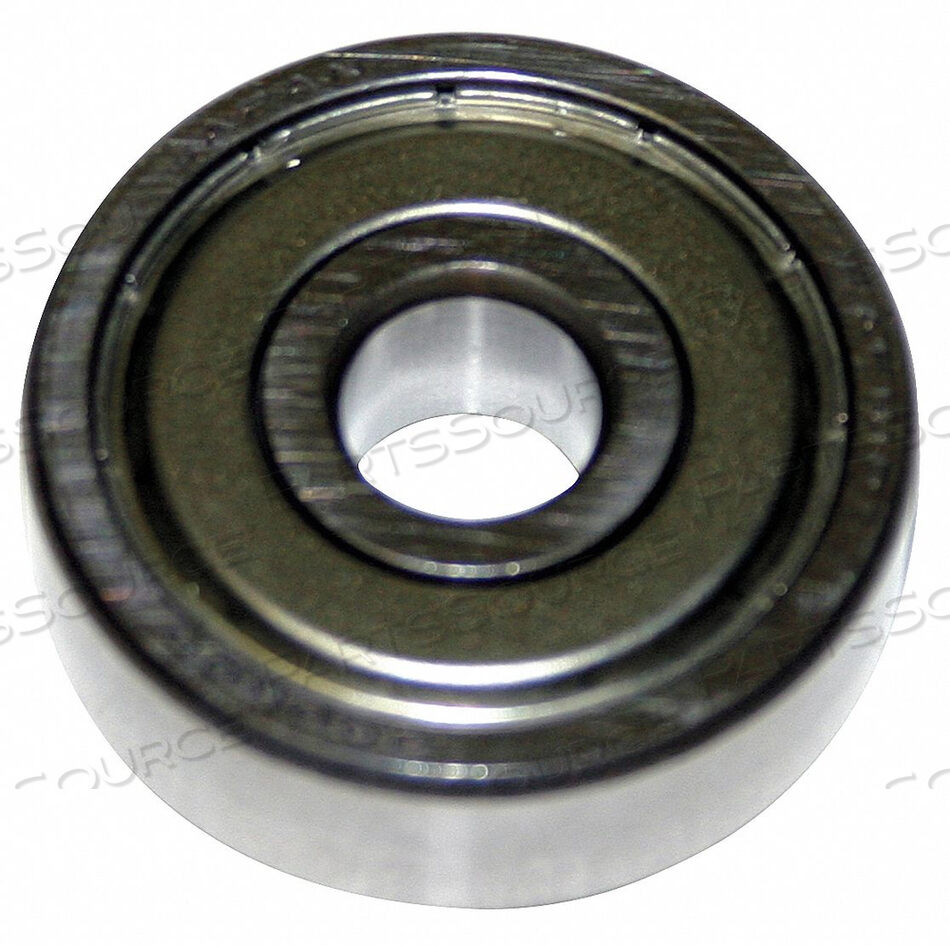

RADIAL BEARING DOUBLE SHIELD 40MM BORE
OEM
Timken
OEM #
9108KDD
Condition
New OEM Original
Returnable
No
ABEC Tolerance
1
Bearing Material
Steel
Bore Dia.
40 mm
Bore Tolerance
+0/-.012mm
Cage Material
Steel
Dynamic Load Capacity
4,500 lb
Industry Number
9108KDD
Lubrication
Chevron SRI 2
Max. RPM
4,630 RPM
Outside Dia.
68 mm
Outside Dia. Tolerance
+0/-.013mm
Seal/Shield Type
Double Shielded
Shield Material
Steel
Single Row/Double Row
Single Row
Static Load Capacity
2,750 lb
Temp. Range
-60 Degrees to 200 Degrees F
Unmounted Bearing Item
Radial Ball Bearing
Width
15 mm
