P/N: 8210G094 Key Specs
Item

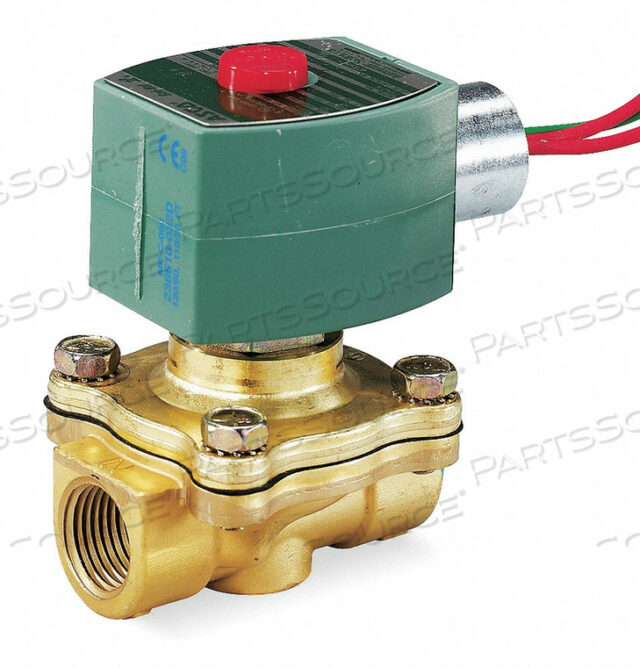

SOLENOID VALVE BRASS NC AIR INERT GAS
OEM
Red-Hat
OEM #
8210G094
Condition
New OEM Original
Returnable
No
Application
Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
Body Material — Valves
Brass
Center Line Pipe Center Size
3-5/16 in
Coefficient of Volume
4
Coil Enclosure
Watertight No Junction Box
Coil Insulation Class
F
Electrical Connections
1/2 in Conduit w/18 in Leads
Environmental Rating — Valves
Indoor, Outdoor
Hz
50/60
IP Rating
66
Max Fluid Temperature
180 Degrees F
Max Operating Pressure Differential Air/Inert Gas
150 psi
Max Operating Pressure Differential Light Oil
Not Rated
Max Operating Pressure Differential Water
150 psi
Media — Valves
Air, Inert Gases, Water
Min Operating Pressure Differential
0 psi
NEMA Rating
1, 2, 3, 3S, 4, 4X
Orifice Diameter
5/8 in
Overall Height
3-15/16 in
Overall Length
3 in
Overall Width
2-5/16 in
Pipe Size — Valves
1/2 in
Seal Material — Valves
NBR
Solenoid Valve Product Group
Solenoid Valve
Valve Configuration
Normally Closed
Valve Ways and Positions
2-Way/2-Position
Voltage
240V AC
Watts
10.1 W
