P/N: 7D519 Key Specs
Item

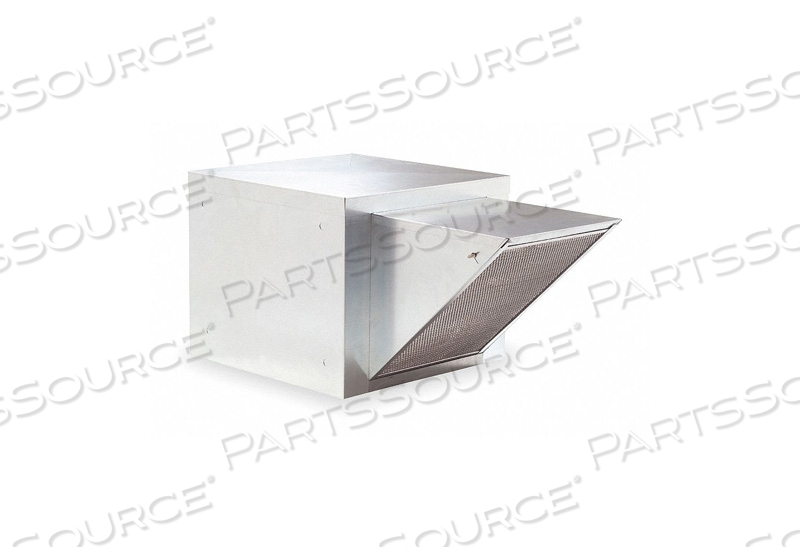

STEEL 34.5 L 32 H 64 W ROOF FAN W.MOTOR
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7D519
Condition
New OEM Original
Returnable
No
Adj. 12 3/8H Roof Curb Stock No.
2ZV84
Adj. 6 3/8H Roof Curb Stock No.
4C455
Agency Compliance
UL and C-UL Listed
Assembled/Unassembled
Unassembled
Base Height (In.)
1 1/2 in
Base Size — Roof Ventilators
32 1/2 in x 32 1/2 in
Bearing Type
Sleeve
CFM @ 0.125-In. SP
4,049 cfm
CFM @ 0.250-In. SP
3,760 cfm
CFM @ 0.375-In. SP
3,456 cfm
CFM @ 0.500-In. SP
2,985 cfm
CFM @ 0.675-In. SP
2,471
CFM @ 0.750-In. SP
1,591 cfm
Dimension A
34 1/2 in
Dimension B
32 in
Dimension C
27 1/2 in
Dimension D
28 1/2 in
Dimension F
2 in
Discharge Length (In.)
16 in
Discharge Width (In.)
18 5/8 in
Drive Package With Motor Included
Yes
Drive Type — Roof Ventilators
Belt Drive
Fan RPM
670
Filter Area (Square-Ft.)
3 3/4
Filter Depth (In.)
1 in
Filter Height (In.)
19 5/8 in
Filter Housing Depth (In.)
29 1/4 in
Filter Housing Height (In.)
27 1/2 in
Filter Housing Width (In.)
28 1/8 in
Filter Material
Aluminum
Filter Width (In.)
27 5/8 in
Housing Height (In.)
34 2/5 in
Housing Length (In.)
34 2/5 in
Housing Material
Galvanized Steel
Housing Width (In.)
64 1/2 in
Includes
Washable Aluminum Filters
Item — Roof Ventilators
Supply Ventilator
Max. BHP
1.13 hp
Max. Inlet Temp. (Deg. F)
120 Degrees F
Motor Enclosure Design
Open Dripproof
Motor HP — Roof Ventilators
1 hp
Motor Hz
60
Mounting Location — Roof Ventilators
Roof
Number of Filters Required
2
Phase
3
Recommended 12 In. Fixed Curb Item No.
2RB80
Recommended 8 In. Fixed Curb Item No.
4HX42
Requires
Roof Curb for New Installations
Shaft Dia. Sheave End (In.)
1 in
Shaft Dia. Wheel End (In.)
1 in
Sones @ 0.125-In. SP @ 5 Ft.
21
Sones @ 0.250-In. SP @ 5 Ft.
18.7
Voltage — Roof Ventilators
208V AC/220V AC/440V AC
Wheel Bore (In.)
1 in
Wheel Dia. (In.)
15 1/2 in
Wheel Material
Steel
Wheel Type
Forward Curved
