P/N: 6Z433 Key Specs
Item

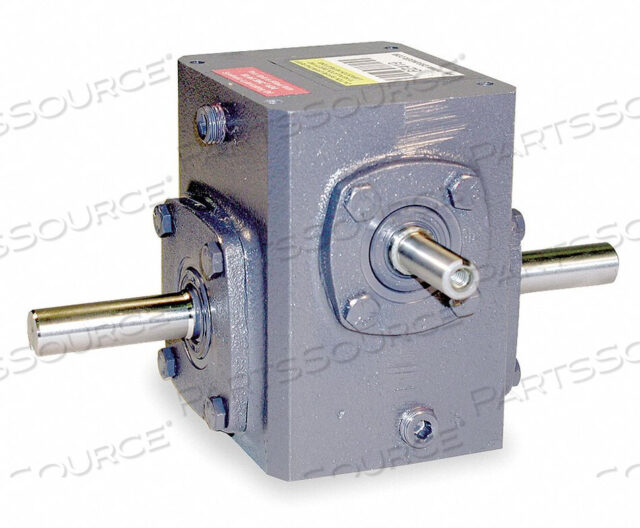

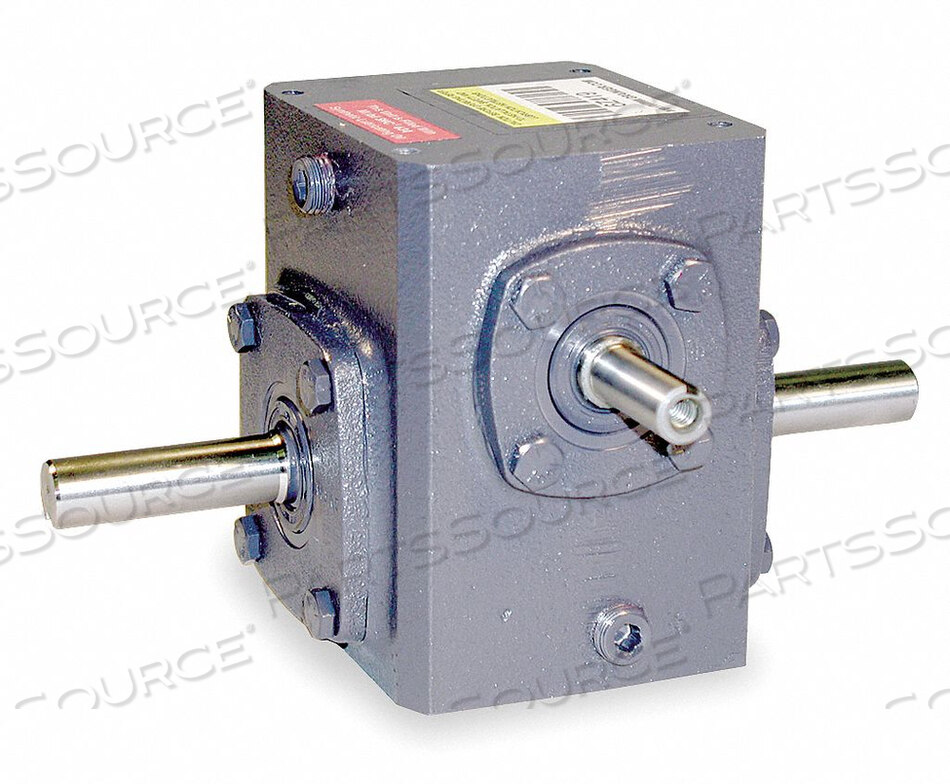

SPEED REDUCER INDIRECT DRIVE 15 1
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6Z433
Condition
New OEM Original
Returnable
No
Bearings
Ball
Duty
Standard
Finish
Powdered Epoxy Paint
Gear Material
Hardened and Ground Steel
Gear Type
Worm
Housing Material
Cast Iron
Input RPM
1,750
Lubrication
Klubersynth UH1 6-460
Max. Input HP
1.5 hp
Max. Output Torque
614 in-lb
Nominal Output RPM
117
Nominal Ratio
15:1
Number of Stages
1
Output Shaft Dia.
1 in
Output Torque @ 1 HP
456 in-lb
Output Torque @ 1.5 HP
614 in-lb
Output Torque @ 3/4 HP
338 in-lb
Overhung Load
875 lb
Pinion Material
Hardened Steel
Rotation
Forward/Reversible
Seal Type
Double Lip
Shaft Orientation
Right Angle
Single/Double Output/Universal
Double Output
Solid/Hollow Output Shaft
Solid
Speed Reducer Type
Indirect Drive
Standards
AGMA
Worm Center Distance
2.06 in
Worm Gear Material
Bronze
