P/N: 6K331 Key Specs
Item

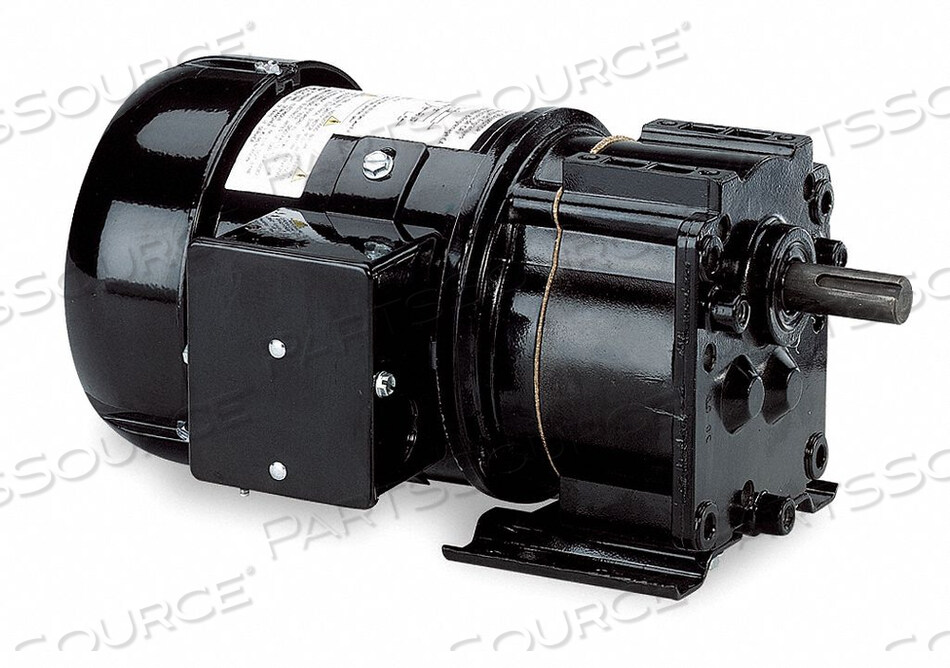

AC GEARMOTOR 60 RPM TEFC 115V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K331
Condition
New OEM Original
Returnable
No
Bearings
Heavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor
Full Load Amps
3.8
Gear Case Material
Die Cast Aluminum
Gear Material
Hardened Steel
Gear Ratio
28:1
Gear Type
Helical First Stage/Subsequent Stages Spur/AGMA Class 9
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9
Housing
Die Cast Aluminum
Hz
60 Hz
Input HP
1/6 hp
Length Less Shaft
9 7/8 in
Lubrication
Permanent Heavy Duty Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
150.0 in-lb
Motor Type
Split-Phase
Nameplate RPM
60 RPM
Number of Brake Discs Required
2
Overhung Load
175 lb
Seals
Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
5/8 in
Shaft Length (Dimension V)
1.5 in
Standards
UL Recognized, C-UL Recognized
Thermal Protection
None
