P/N: 6ALE4 Key Specs
Item

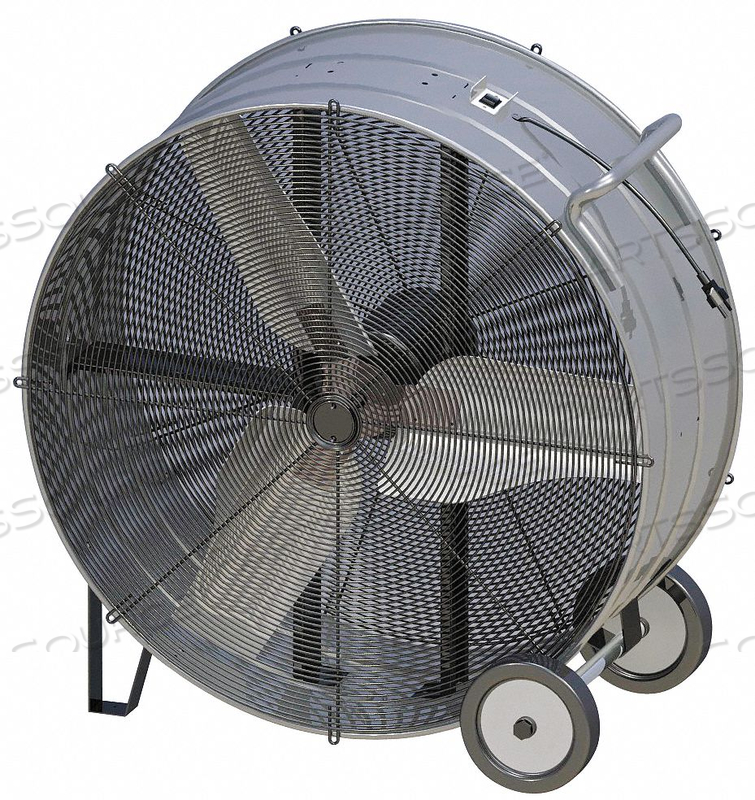

CRRSION RSSTNT INDSTRL FAN 48 BLDE DIA
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6ALE4
Condition
New OEM Original
Returnable
No
Air Flow
21,000 cfm
Air Velocity @ 10 Ft.
755 fpm
Air Velocity @ 20 Ft.
557 fpm
Air Velocity @ 40 Ft.
343 fpm
Air Velocity @ 60 Ft.
240 fpm
Air Velocity @ 80 Ft.
202 fpm
Amps
8.7
Assembly Required
Yes
Bearing Type
Ball
Blade Diameter
48 in
Blade Material
Aluminum
Color
Light Gray
Depth
21 in
Drive Type
Direct Drive
Environmental Applications
Industrial
Fan Cord Length
10 ft
Fan Housing Material
Steel
Fan Mounting Location
Floor
Guard Material
Steel
Height
52 in
Height Adjustment
Fixed Height
Hz
60 Hz
Includes
10 in Steel and Rubber Wheels, Cord Wrap
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air-Over
Motor HP
1 hp
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
NEMA Plug Configuration
5-15P
Number of Blades
3
Number of Conductors
3
Number of Speeds
1
Oscillation
Non-Oscillating
Phase
1
RPM
850
Shaft Dia.
19 mm
Sound Level
88 dBA
Standards
cULus Listed
Thermal Protection
Automatic Reset
Voltage
120V AC
Watts
1000
Wheel Dia.
10 in
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Width
51 1/2 in
Wire Guard Finish
Polyester Powder Coated Black
