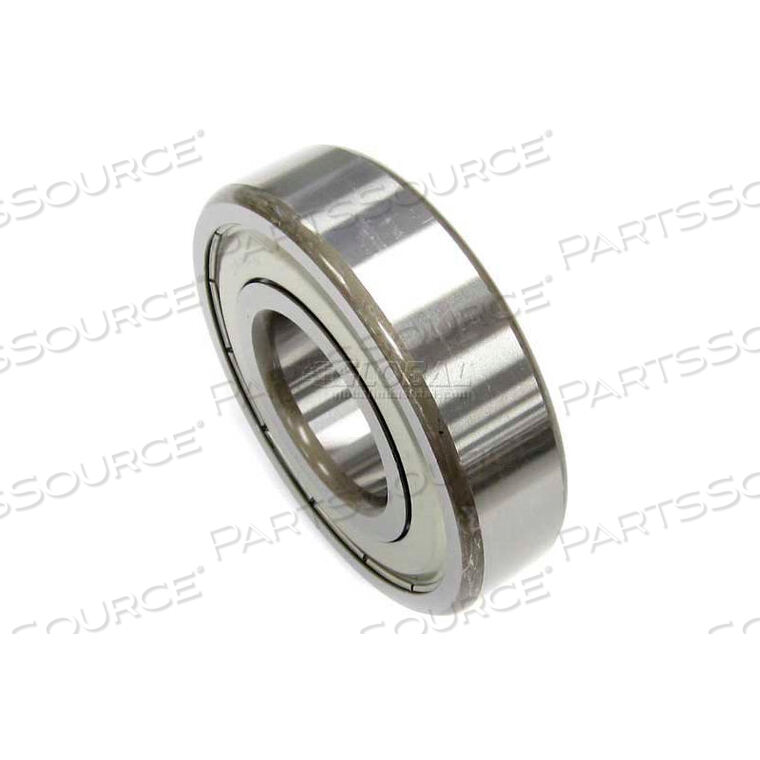

OEM#: 6815ZZRADIAL BALL BEARING, DOUBLE SHIELDED, 75MM BORE, 95MM OD by Nachi America Inc

36 450

NACHI Radial Ball Bearing 6815ZZ, Double Shielded, 75MM Bore, 95MM ODRadial Ball Bearing has moderate load-carrying capacity in both radial and axial directions and is good for high speed and high accuracy. Rubber seal or metal shield on one or both sides of the bearing helps keep out dirt and contaminants. In case two seals or two shields are used, the bearing is lubricated by grease for its life when manufactured. The bearing with 10 to 75 mm bore (6000 to 6300 series) & 10 to 50 (6800 & 6900 series) improves reliability with newly designed seal and shield, and suitable grease. Quiet rotation is expected by improved accuracy of components, and saving cost and energy is also expected by lower power loss provided by low and stable running torque.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.
Оплата физическими и юридическими лицами безналичным расчетом.
Цена может измениться после запроса у поставщика!
Артикул: HomeNachi America Inc6815ZZ TME арт.: HomeNachi America Inc6815ZZ

P/N: 6815ZZ Key Specs

Item
RADIAL BALL BEARING, DOUBLE SHIELDED, 75MM BORE, 95MM OD
OEM
Nachi America Inc
OEM #
6815ZZ
Condition
New OEM Original
Returnable
No
Bearing Type
Double Shielded
Bore (Mm)
75
Dynamic Load Rating (N)
12,500
Max Speed / Grease (Rpm)
6,500
Od (Mm)
95
Radial Clearance
Normal
Series
6800
Static Load Rating (N)
12,800
Tolerance
ISO Class 0
Width Millimeters
10
