P/N: 6305LLUC3/L627 Key Specs
Item

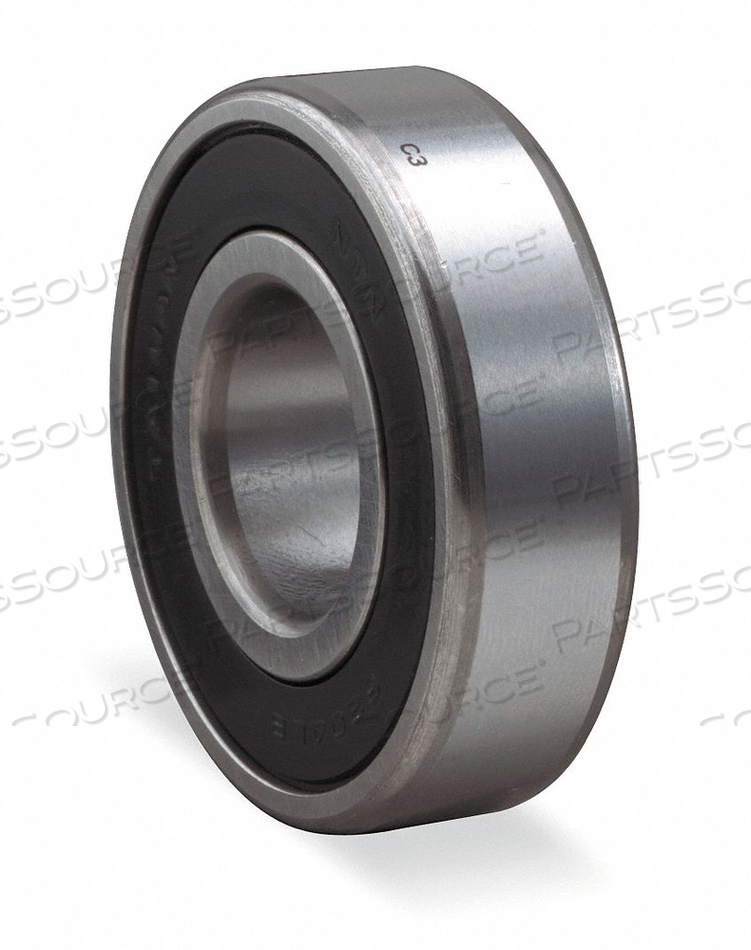

RADIAL BEARING DOUBLE SEAL 25MM BORE
OEM
NTN
OEM #
6305LLUC3/L627
Condition
New OEM Original
Returnable
No
ABEC Tolerance
1
Bearing Material
Steel
Bore Dia.
25 mm
Bore Tolerance
+0/-0.01mm
Cage Material
Pressed Steel
Dynamic Load Capacity
4,750 lb
Industry Number
6305LLUC3
Lubrication
Polyrex EM Grease
Max. RPM
8,100 RPM
Outside Dia.
62 mm
Outside Dia. Tolerance
+0/-0.013mm
Seal Material
NBR
Seal/Shield Type
Double Contact Sealed
Single Row/Double Row
Single Row
Static Load Capacity
2,460 lb
Temp. Range
-13 Degrees to 250 Degrees F
Unmounted Bearing Item
Radial Ball Bearing
Width
17 mm
