P/N: 5VLN6 Key Specs
Item

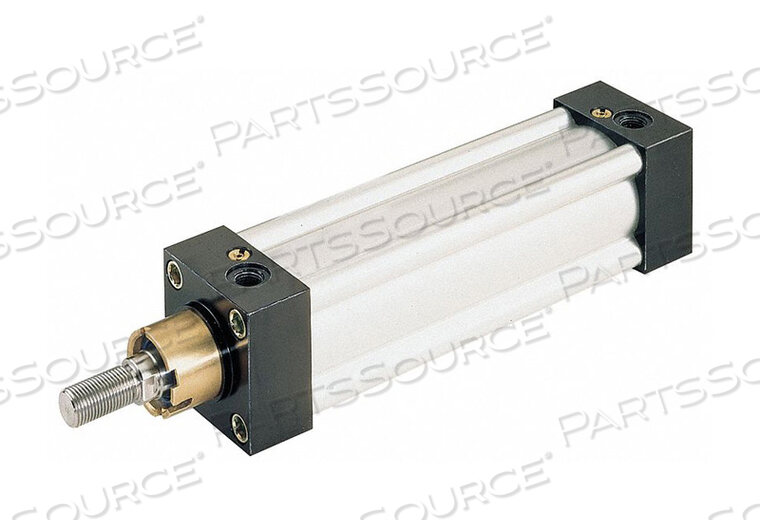

D8549 NFPA AIR CYLIN 4INBORE 13-1/2INSTROKE
OEM
Speedaire
OEM #
5VLN6
Condition
New OEM Original
Returnable
No
Air Cylinder Bore Dia.
4 in
Air Cylinder Mount
NFPA MX5/MS4
Air Cylinder Product Group
Air Cylinder
Air Cylinder Type
NFPA
Body Material
Aluminum
Bore Dia.
4 in
Cushion Type
Head and Cap
Cylinder Action
Double Acting
Cylinder Type
NFPA
End Cap Material
Anodized Aluminum
Magnetic Piston
Yes
Max. Pressure
250 psi
Mount
NFPA MX5/MS4
Overall Length
20.25 in
Piston Material
Composite
Piston Rod Material
Case Hardened, Chrome Plated Steel
Port Size
1/2 in
Rod Dia.
1 in
Rod Thread Length
1.25 in
Rod Thread Size
3/4-16 UNF
Single Acting/Double Acting
Double Acting
Standards
NFPA, RoHS Compliant
Stroke
13 1/2 in
Temp. Range
-10 Degrees to 165 Degrees F
Tube Material
Anodized Aluminum
