P/N: 5RHU6 Key Specs
Item

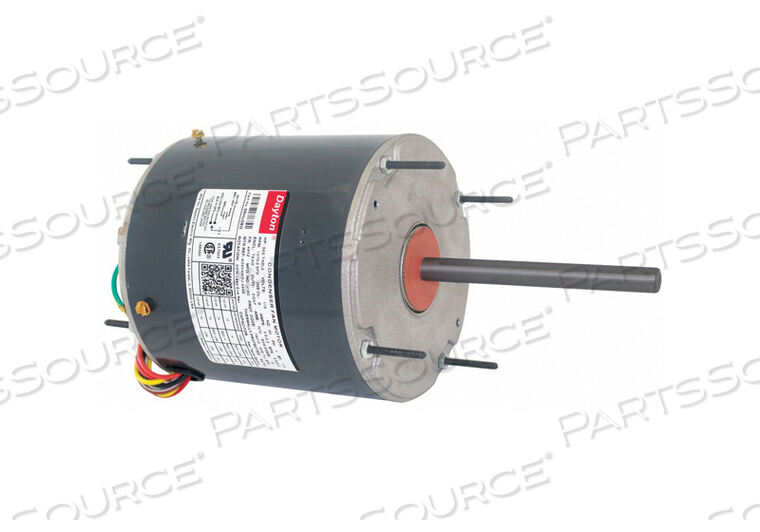

CONDENSER FAN MOTOR 1/2 1/5 HP 1075 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5RHU6
Condition
New OEM Original
Returnable
No
Application
Replaces OEM Condenser Fan Motors
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
Included
Duty
Continuous
Frame
48YZ
Full Load Amps
1.3-0.56
HP
1/2 to 1/5
Hz
60
Includes
Capacitor
Ins. Class
B
Lead Length
48 in
Length Less Shaft
5-13/16 in
Max Ambient Temperature
70 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Nominal Efficiency
70 %
Number of Speeds
2
Overall Length
10-13/16 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
5 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Stud Quantity
4
Stud Size
8-32 UNF-2A x 3/4 in (Both Ends)
Voltage
460
