P/N: 5PHA1A Key Specs
Item

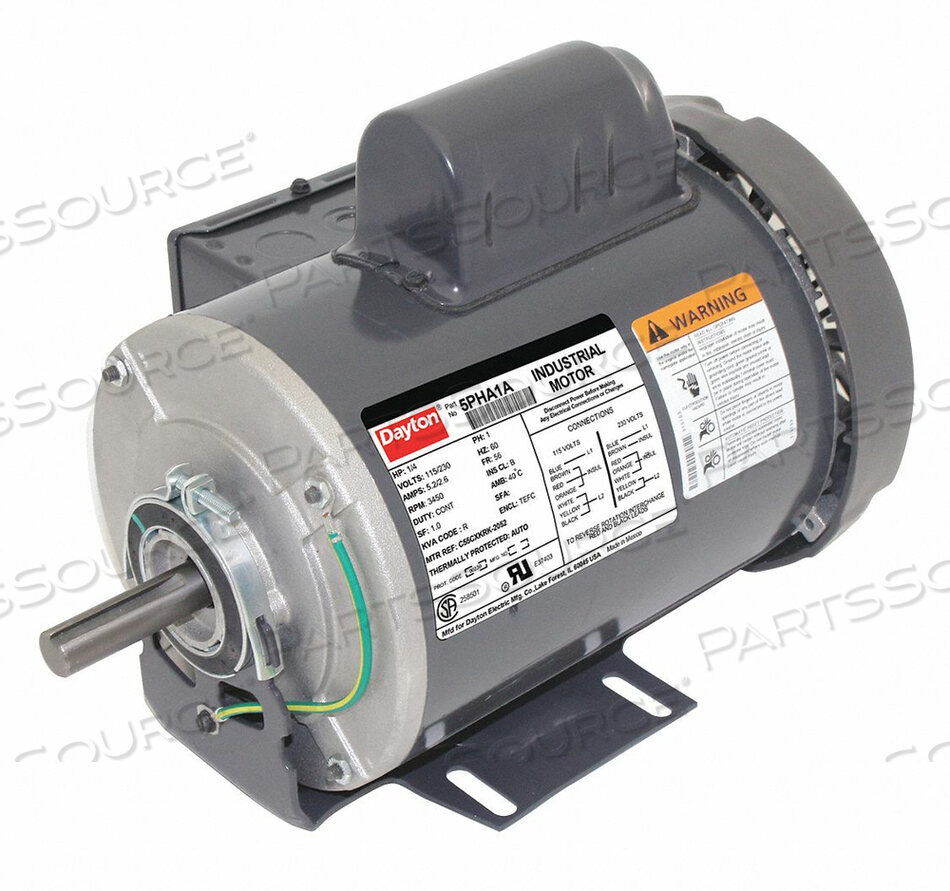

GP MTR CS TEFC 1/4 HP 3450 RPM 56
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5PHA1A
Condition
New OEM Original
Returnable
No
Duty
Continuous
Frame
56
Full Load Amps
5.2/2.6
HP
1/4 in
Hz
60
Ins. Class
B
Length Less Shaft
10 3/32 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
3450
Nominal Efficiency
47.1 %
Number of Speeds
1
Overall Length
12 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA (258501), UL (E37403)
Voltage
115/230
