P/N: 5K659 Key Specs
Item

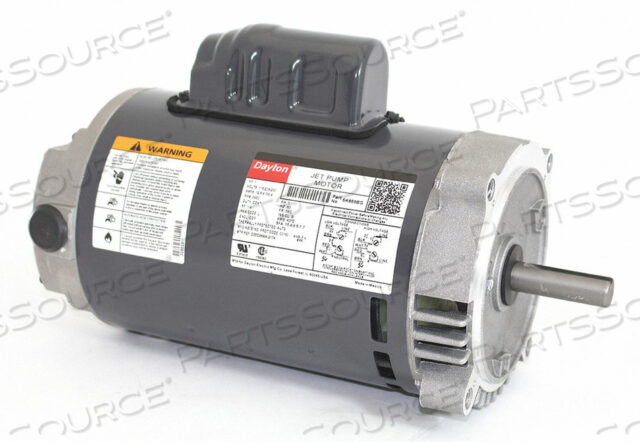

MOTOR 1 HP 3 450 RPM 56C 115/208-230V
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
5K659
Condition
New OEM Original
Returnable
No
Body Diameter
5-5/8 in
Frame
56C
Full Load Amps
12.8/6.7-6.4
HP
1
Hz
60
Includes
Dripcover Kit for Vertical Mounting, Shaft Key, Water Slinger
Ins. Class
B
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Face
Motor Service Factor
1.4
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Jet Pump
Motor Thermal Protection
Auto
Nameplate RPM
3450
Nominal Efficiency
73.1 %
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
