P/N: 5C435 Key Specs
Item

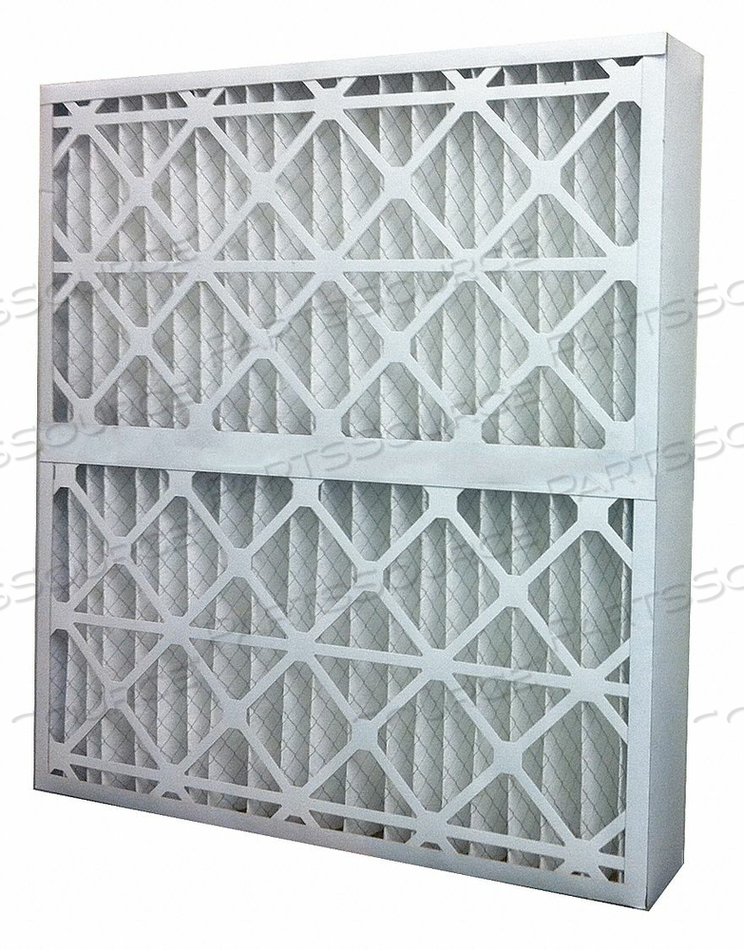

PLEATED AIR FILTER 28X30X4 MERV 7
OEM
Air Handler
OEM #
5C435
Condition
New OEM Original
Returnable
No
Actual Depth
3-3/4 in
Actual Filter Size
27-1/2 x 29-1/2 x 3-3/4 in
Actual Height
27-1/2 in
Actual Width
29-1/2 in
Air Filter Capacity
Standard Capacity
Air Filter Item
Pleated Air Filter
Air Flow @ 300 fpm
1,750 cfm
Air Flow @ 500 fpm
2,917 cfm
Common Applications
General Use
Filter Efficiency — Air Filters
35 %
Filter Frame Color
White
Filters Out
MERV 5-8 Mold, Spores, Dust Mites, Cat & Dog Dander, Hair Spray, Fabric Protector, Dusting Aids, Cement Dust, Pudding Mix
Final Recommended Resistance
1 in in wc
Frame or Header Material
Beverage Board
Gasket Location
None
Gasket Material
None
Initial Resistance @ 300 fpm
0.22 in wc
Initial Resistance @ 500 fpm
0.37 in wc
Max Temperature
180 Degrees F
Max Velocity
625 fpm
Media Area
33.1 sq ft
Media Color
White
Media Material
Synthetic
Merv Rating
7
Nominal Depth
4 in
Nominal Filter Size
28x30x4
Nominal Height
28 in
Nominal Width
30 in
Pleats per Linear Foot
22
Removes Particles Down To
3 to 10 microns
Standards
UL 900 Classified
Style — Air Filters
Panel
