P/N: 5520MK103-0072 Key Specs
Item

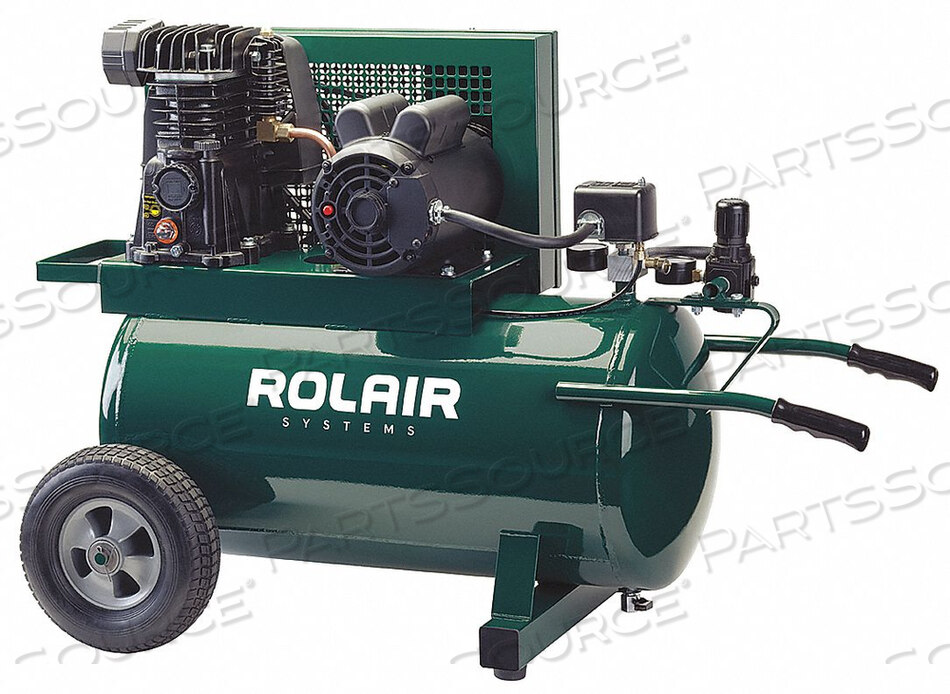

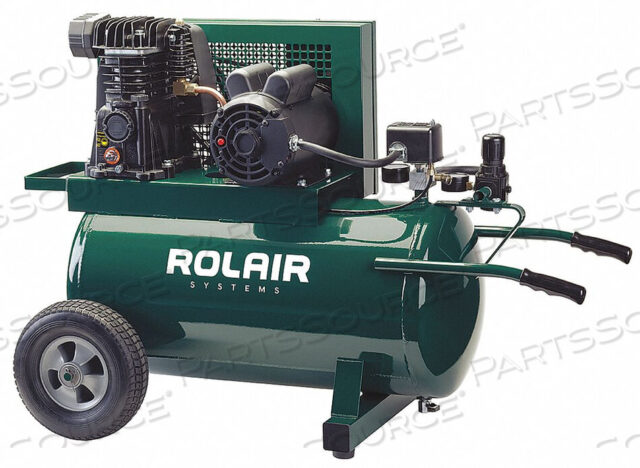

PORTABLE AIR COMPRESSOR 20GAL HORIZONTAL
OEM
Rolair
OEM #
5520MK103-0072
Condition
New OEM Original
Returnable
No
(F)NPT Outlet
1/4 in
Avg. Pump Life
10,000 hr
Cylinder Material
Cast Iron
Free Air CFM @ 90 PSI — Air Compressor
7.3
Free Air CFM @ Max. Pressure — Air Compressor
7.3
Full Load Amps
17.0
HP — Air Compressor
1.5 hp
Input Voltage — Air Compressor
120V AC
Item — Air Compressor
Portable Air Compressor
Lubrication Type — Air compressor
Splash Lubricated
Max. Pressure — Air Compressor
135 psi
Motor RPM
1,725 RPM
Motor Type
Induction
Overall Height
34 in
Overall Length
42 in
Overall Width
22 in
Standards
CSA 22.2 No. 68, UL150
Tank Size — Air Compressor
20 gal
Tank Style — Air Compressor
Horizontal
Weight — Air Compressor
200 lb
dBA @ 3 Feet
73.0
