P/N: 52JE27 Key Specs
Item

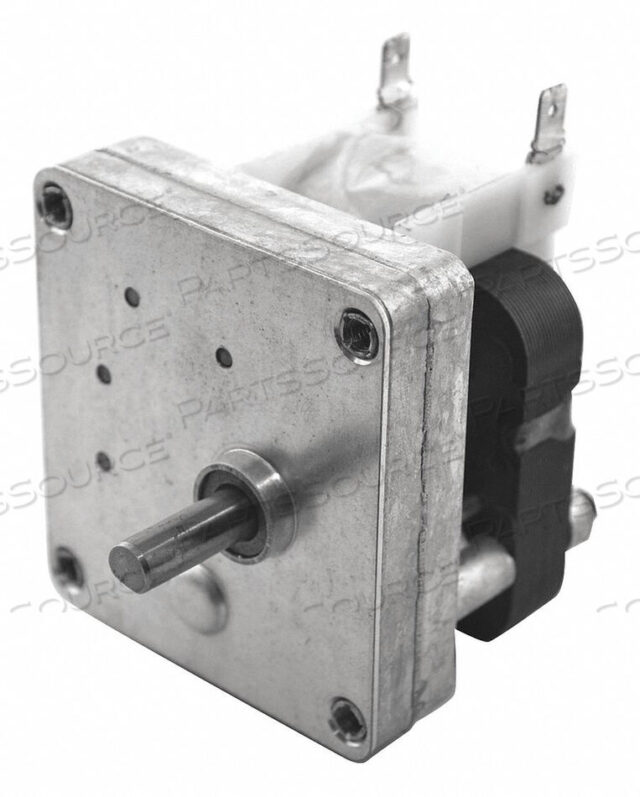

AC GEARMOTOR NAMEPLATE RPM 6.9 0.52A
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
52JE27
Condition
New OEM Original
Returnable
No
Application
Ice Dispensing, Mail Sorting, Ticket Dispensing, DVD Kiosks, Conveyors, Agriculture, Industrial Machinery, Printing Press, Power Transmission, Packaging, Controls, X-Ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Device
Bearings
Sintered Bronze Sleeve
Capacitor Required
No
Finish
Unpainted
Full Load Amps
0.52
Gear Case Material
Die Cast Zinc
Gear Material
Sintered Steel
Gear Ratio
439.3:1
Gear Type
Spur
Gearmotor Brake Type
None
Gearmotor Enclosure
Open
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Spur
Housing
Die Cast Zinc
Hz
60 Hz
Input HP
1/100 hp
Insulation Class
A
Length Less Shaft
2 3/8 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Max. Torque
35.0 in-lb
Motor Shaft Design
Flat
Motor Type
Shaded Pole
Nameplate RPM
6.9 RPM
No Load RPM
7.9 RPM
Number of Brake Discs Required
0
Overall Length
3.75 in
Overhung Load
30 lb
Reversible Shaft Output
No
Service Factor
1.0
Shaft Dia. (Dimension U)
5/16
Shaft Length (Dimension V)
1
Standards
UL Recognized/CSA
Starting Torque
27 in-lb
Thermal Protection
Impedance
