P/N: 509 1 Key Specs
Item

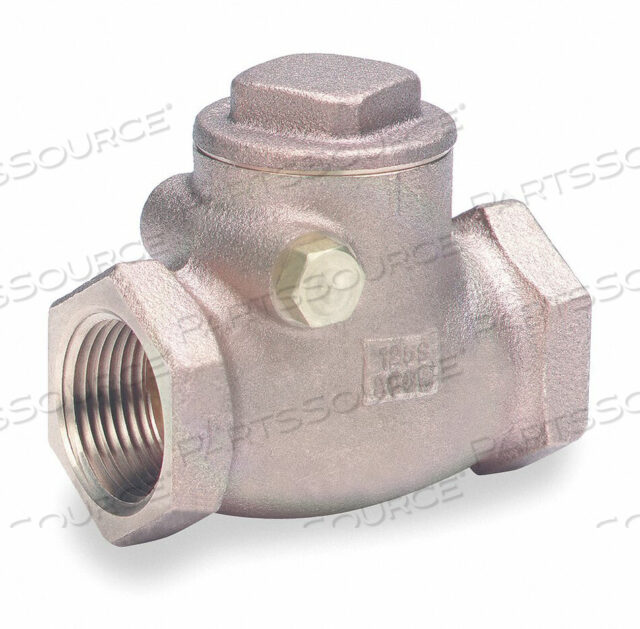

SWING CHECK VALVE BRONZE 1 FNPT
OEM
Milwaukee Valve
OEM #
509 1
Condition
New OEM Original
Returnable
No
Application — Valves
General Purpose
Body Material — Valves
Bronze
Cap to Inlet Center
2 in
Connection Type — Check Valves
FNPT x FNPT
Cracking Pressure — Check Valves
0.75 to 1 psi
Flow — Valves
31 gpm
Flow Design
Single
Full Flow — Valves
Yes
Item — Check Valves
Check Valve
Length
3-1/4 in
Max Steam Pressure — Valves
125 psi WSP
Max Temperature — Valves
406 Degrees F
Max Water Pressure — Valves
200 psi @ 150 Degrees F
Mechanism and Body Design
Inline Swing
Min Temperature — Valves
-20 Degrees F
Mounting Orientation — Check Valves
Horizontal, Vertical
Pipe or Tube Size — Check Valves
1 in
Seal Material — Check Valves
Bronze
Seat Material — Check Valves
Brass
Standards
MSS SP-80
