P/N: 4P-700-3 Key Specs
Item

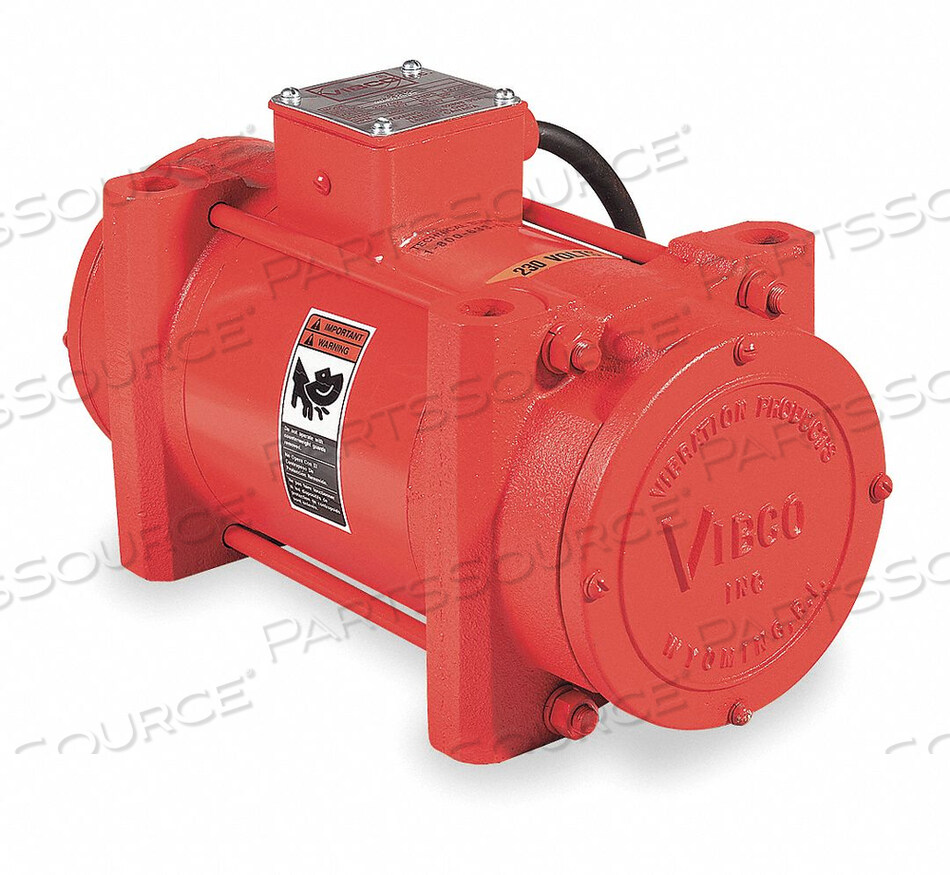

ELECTRIC VIBRATOR 1.2/0.6A 460V 3-PHASE
OEM
Vibco
OEM #
4P-700-3
Condition
New OEM Original
Returnable
No
Amps
1.2/0.6
Application
For Packing Materials in Drums and Bags and Unjamming Parts in Conveyor Lines, Chutes and Pipes, Bins Containing Lumpy or Sticky Materials for Packing Light, Fluffy Materials and as a Typical Screen Vibrator, Trucking and Mobile
Bearing Type
Prelubricated
Bin Weight Capacity
7,000 lb
Duty
Continuous Only at Certain Force Settings, Intermittent Duty at Maximum Force Settings
Enclosure
Totally Enclosed Non-Ventilated
Force
Mechanically Adjustable
Force Rating
100 to 500 lb
HP
1/2 hp
Max. Temp.
200 Degrees F
Mounting Plate
Sold Separately
Mounting Position
Universal
Overall Height
7 1/2 in
Overall Length
13 1/8 in
Overall Width
6 1/2 in
Phase
3
Power Source
Electric
Speed
1800 vpm
Standards
CE Certified, Meets ASTM and ASME
Vibrator Type
Heavy Duty
Voltage
230/460V AC
dBA
63
