P/N: 4B248 Key Specs
Item

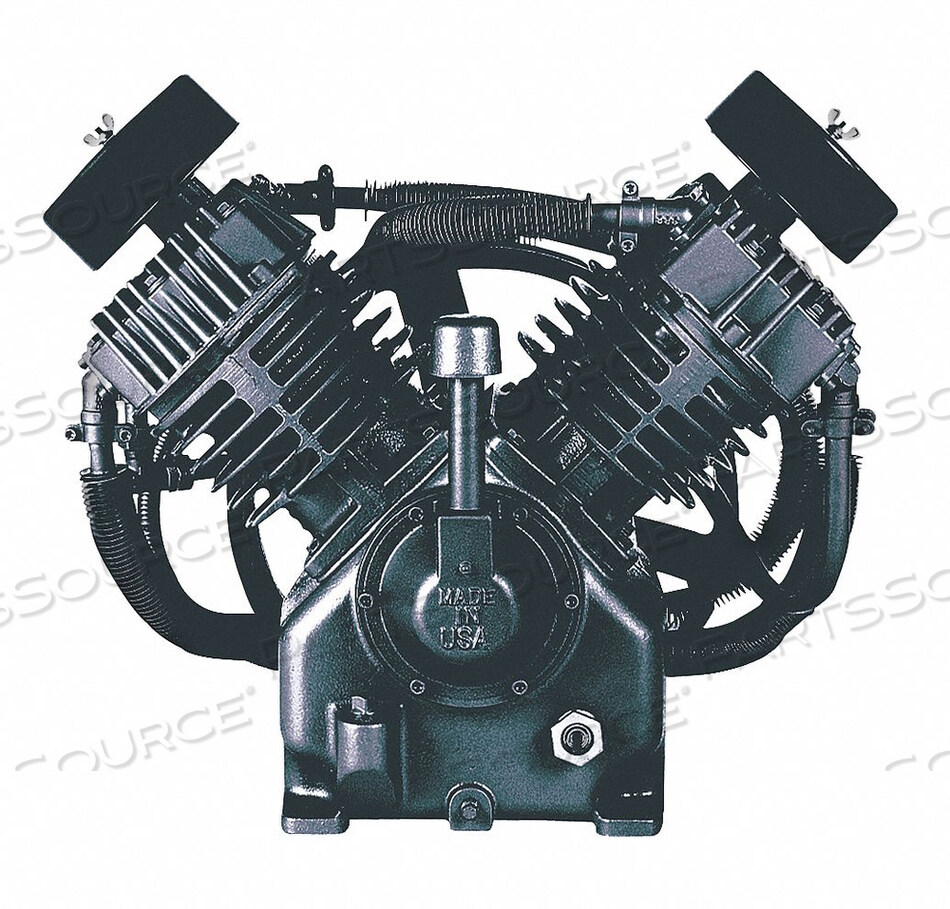

AIR COMPRESSOR PUMP 2 STAGE 15 HP
OEM
Speedaire
OEM #
4B248
Condition
New OEM Original
Returnable
No
Bore Dia.
2 1/2 in, 4 3/4 in
Construction
Cast Iron
Finish
Black Powder Coated
Flywheel Dia.
19 3/8 in
Flywheel Included
Yes
Free Air CFM @ Max. Pressure
51
HP
15 hp
Lubrication Type
Splash Lubricated
Max. Pressure
175 psi
Mounting Pattern
9-5/8 in W x 8-1/16 in D
NPT Outlet
3/4 in
Number of Cylinders
4
Number of Stages
2
Oil Capacity
4 qt
Overall Depth
19 1/2 in
Overall Height
24 1/2 in
Overall Width
28 3/8 in
Pump RPM
1,020
Rotation
CCW
Sheave Size @ 1725 RPM
11 in
Stroke Length
3 in
Valve Material
Stainless Steel
