P/N: 3UH12 Key Specs
Item

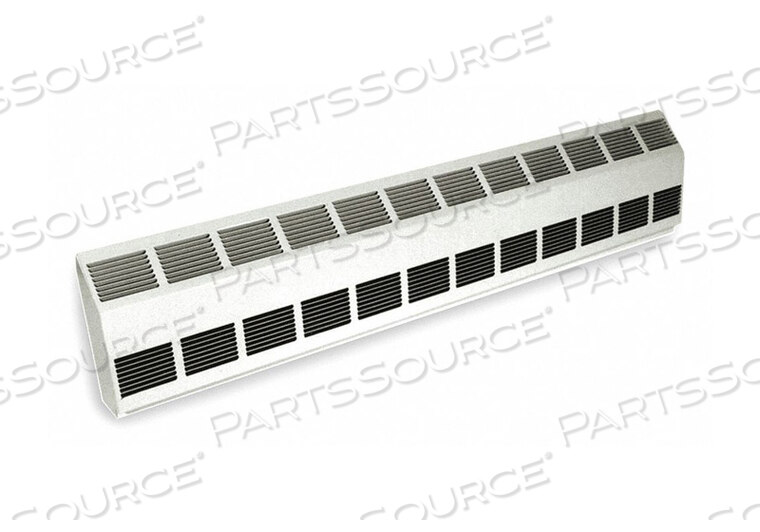

ELCTRC BASEBOARD HEATER 96 L 208/240V
OEM
QMark
OEM #
3UH12
Condition
New OEM Original
Returnable
No
Amperage
7.2/8.3A
Automatic Fan Delay (On/Off)
No
Building Management System Compatible
No
Control Type
Thermostat
Disconnect Switch
No
Duty Rating
Commercial Grade
Frequency
60 Hz
Heating Capacity
5118/6826 BtuH
Heating Method
Convection
Hold Function
No
Housing Color
Beige
Housing Finish
Enamel
Housing Material
Steel
Housing Style
Slope Top
Includes
Built in Cable Clamp, Grounding Wire Pigtail in Both Junction Boxes, High Temperature Safety Limit Switch, Pre Notched Guide Marks in Rear of Cabinet
Key Features
Overheat Protection
Mounting Type
Floor
NEMA Plug Configuration
Hardwired
Nominal Voltage — HVAC
208V AC, 240V AC
Overall Depth
3-1/4 in
Overall Dimensions — L x H x D
96 in x 10 in x 3-1/4 in
Overall Height
10 in
Overall Length
96 in
Phase
1
Programming Capability
Not Progra mmable
Remote Control Functions
No Remote Control Included
Safety Tip-Over Switch Included
No
Setback Control
No
Smart Connectivity
No Connectivity
Standards
C-UL Listed, UL Listed
Tamper Resistant
No
Thermal Overheat Protection
Automatic Reset
Thermostat Contact Type
Double Pole
Thermostat Included
No
Voltage
208/240V AC
Voltage — Plug Type
208/240V AC, Hardwired
Wattage Output
1500W/2000W
