P/N: 3K663 Key Specs
Item

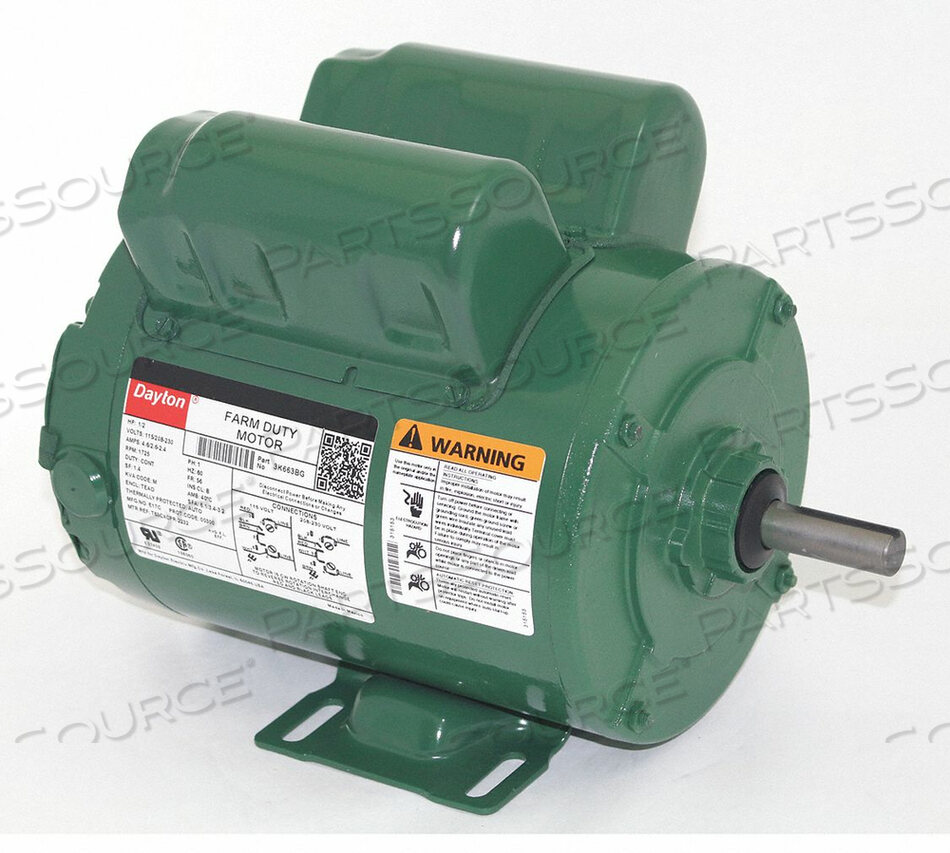

FARM DUTY MOTOR 1/2 HP 1725 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
3K663
Condition
New OEM Original
Returnable
No
Capacitor Required
Included
Duty
Continuous Air Over
Finish
Farm Duty Green
Frame
56
Full Load Amps
4.6/2.6-2.4
HP
1/2
Hz
60
Includes
Conduit Box, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
Ins. Class
B
Item — Farm Duty Motors
Agricultural Fan Motor
Length Less Shaft
9-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Farm Duty
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.4
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Poultry/Livestock Direct Drive Fan
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
77.9 %
Overall Length
11-11/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
