P/N: 3827-E60-AA86B Key Specs
Item

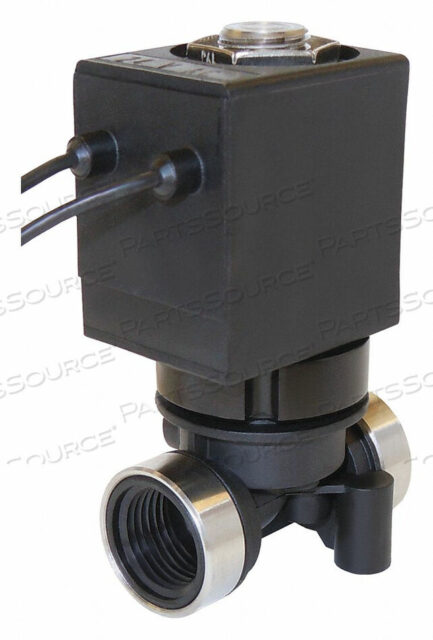

VALVE GLASS FILLED NYLON 2WAY/2POSITION
OEM
Spartan Scientific
OEM #
3827-E60-AA86B
Condition
New OEM Original
Returnable
No
Application
General Purpose
Body Material — Valves
Glass-Filled Nylon
Coefficient of Volume
0.17
Coil Enclosure
Watertight and Dust Tight
Coil Insulation Class
F
Electrical Connections
Wire Leads
Environmental Rating — Valves
Outdoor
Hz
50 to 60
Max Fluid Temperature
194 Degrees F
Max Operating Pressure Differential Air/Inert Gas
200 psi
Max Operating Pressure Differential Light Oil
200 psi
Max Operating Pressure Differential Water
200 psi
Media — Valves
Air, Bases, Inert Gases, Light Oil, Water
Min Operating Pressure Differential
0 psi
NEMA Rating
4, 4X
Operation
Direct Acting
Orifice Diameter
5/64 in
Overall Height
2-7/16 in
Overall Length
1-3/32 in
Overall Width
1-7/64 in
Pipe Size — Valves
1/8 in
Safe Working Water Pressure
200 psi
Seal Material — Valves
EPDM
Solenoid Valve Product Group
Plastic Solenoid Valve
Standards
CE
Valve Configuration
Normally Closed
Valve Ways and Positions
2-Way/2-Position
Voltage
24V AC
Watts
6.5 W
