P/N: 343-30-THA-208V Key Specs
Item

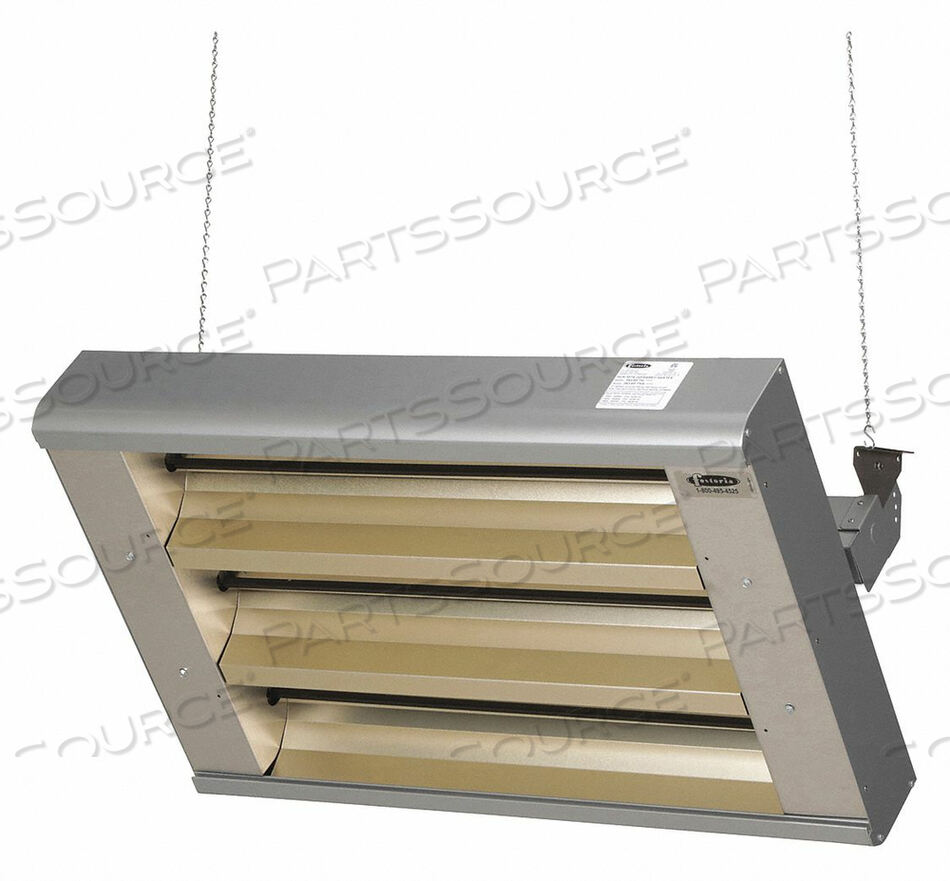

SPND INFRD RDNT ELC CEIL HEATR 33 L 208V
OEM
TPI Corporation
OEM #
343-30-THA-208V
Condition
New OEM Original
Returnable
No
Amperage
20.8A/36.1A
Beam Pattern
30 Degrees
Brightness
60,000 lm
Electrical Connection
Hard Wired
Element Type
Quartz Lamp
For Use Outdoors
Indoor/Outdoor
Frequency
50/60Hz
Grille Depth
1/8 in
Grille Height
25-1/2 in
Grille Material
Stainless Steel
Grille Width
18-3/4 in
Heater Mounting Position
Horizontal Burn
Heating Capacity
25,298 BtuH
Heating Method
Radiant
Housing Color
Silver
Housing Finish
Nickel-Gray
Housing Material
Aluminum
Includes
(6) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard
Infrared Electromagnetic Wave Type
Short Wave
Max Operating Temperature
Varies, based on distance from target & mounting height
Mobility
Stationary
Mounting Location
Ceiling, Wall
Mounting Type
Recessed, Surface, Suspended
NEMA Plug Configuration
Hard Wired
Number of Lamps
3
Overall Depth
11 in
Overall Length
33 in
Overall Width
21-1/2 in
Phase
1 or 3
Radiant Efficiency
96 %
Reflector Material
Aluminum, Gold Anodized
Standards
ETL Listed for US, Canada
Voltage
208V AC
Wattage Output
7500W
