P/N: 324TTFS7290 Key Specs
Item

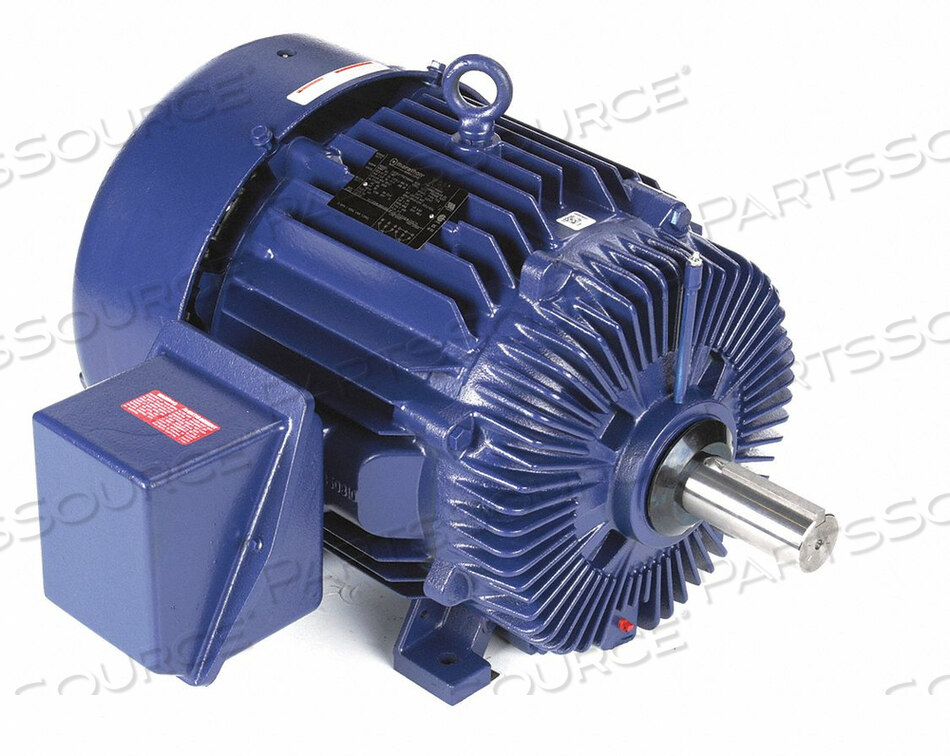

CT MOTOR 3-PH TEFC 30 AND 7-1/2 HP
OEM
Marathon Motors
OEM #
324TTFS7290
Condition
New OEM Original
Returnable
No
Ambient Temperature
40 Degrees C
CC Number
CC003A
Duty
Continuous
Finish
Blue Epoxy
Frame
324T
Full Load Amps
35/11.2
HP
30, 7-1/2
Hz
60
Ins. Class
F
Length Less Shaft
23-3/8 in
Motor Application
Cooling Tower
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1785/888
Nominal Efficiency
95.8%
Overall Length
2-1/8 in
Phase
3
Shaft Diameter
2-1/8 in
Shaft Length
5-1/2 in
Standards
CSA (LR2025), UL (E49747)
Voltage
230/460
Warranty
1 yr
