P/N: 324TTFCD6028 Key Specs
Item

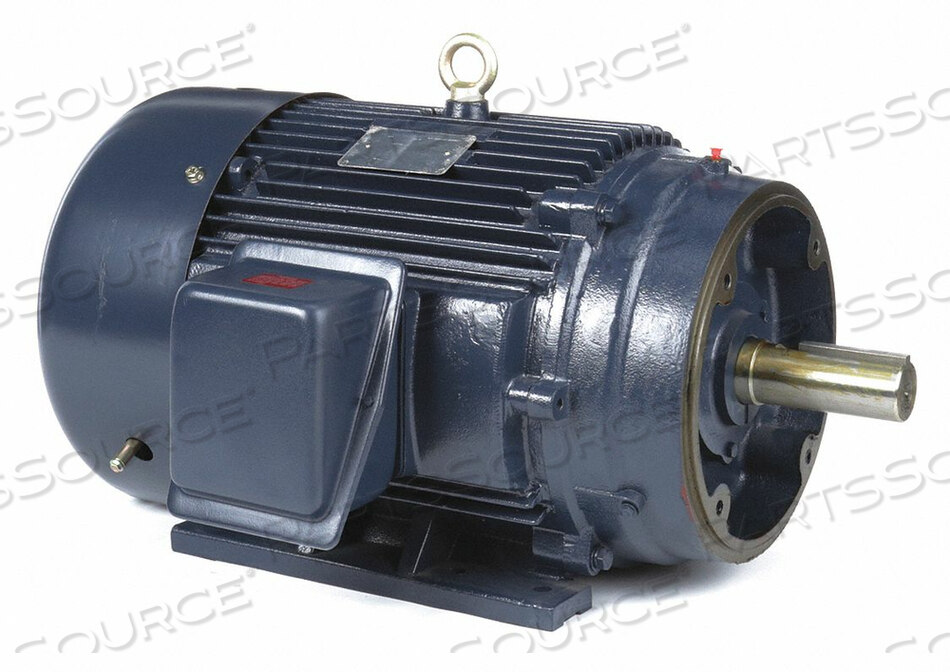

MOTOR 3-PH TEFC 40 HP 1780 RPM 230/460V
OEM
Marathon Motors
OEM #
324TTFCD6028
Condition
New OEM Original
Returnable
No
CC Number
CC003A
Duty
Continuous
Frame
324TC
Full Load Amps
94/47
HP
40
Hz
60/50
Ins. Class
F
Inverter Rated
No
Length Less Shaft
27 7/16 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1780
Nominal Efficiency
94.5 %
Number of Speeds
1
Overall Length
32 11/16 in
Phase
3
Shaft Diameter
2-1/8 in
Shaft Length
5-1/4 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
