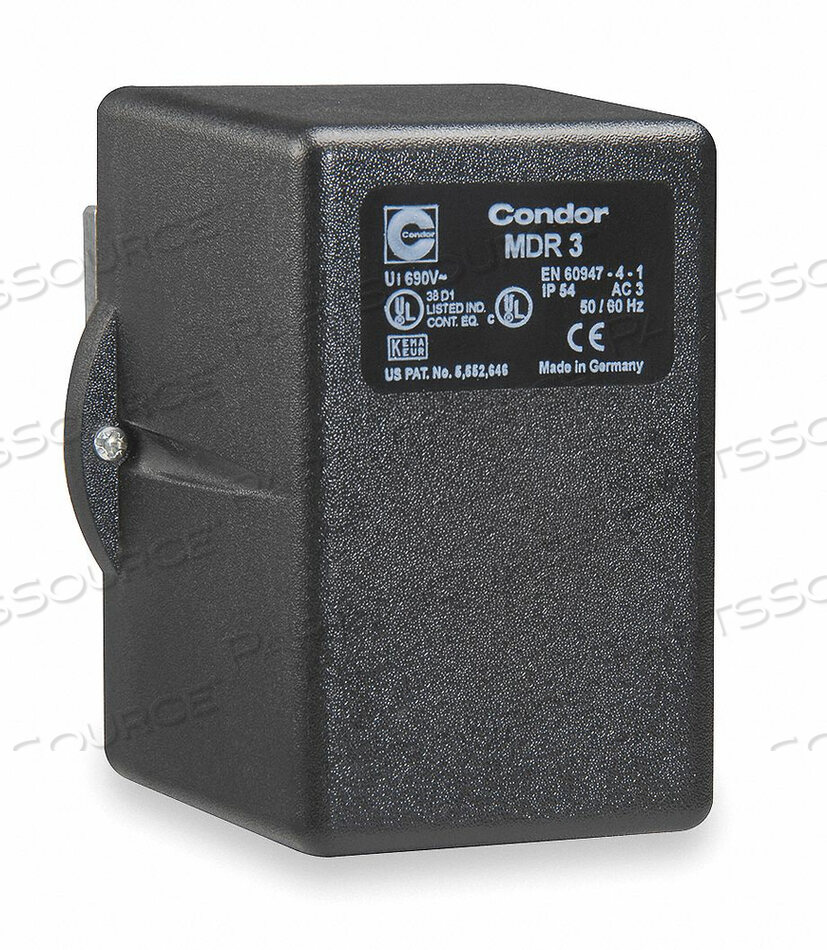

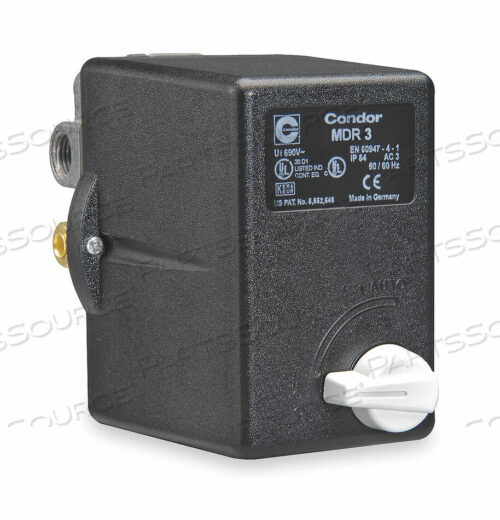

P/N: 31NEXAXX Key Specs
Item
PRESSURE SWTCH STANDRD 10 TO 90 PSI 3PST
OEM
Condor USA, Inc
OEM #
31NEXAXX
Condition
New OEM Original
Returnable
No
AC Contact Rating
30A @ 240V
HP @ 1 Phase — 120V
2 hp
HP @ 1 Phase — 240V
5 hp
HP @ 3 Phase — 240V
7-1/2 hp
HP @ 3 Phase — 480V
15 hp
Manual Switch Action
None
NEMA Rating
1
Pressure Switch Action
Standard
Pressure Switch Application
Air Compressor
Pressure Switch Differential
10 to 80 psi
Pressure Switch Electrical Contact Form
3PST
Pressure Switch Factory On/Off Setting
30/40 psi
Pressure Switch Port Type
(1) Port, 3/8 in FNPT
Pressure Switch Range
10 to 90 psi
Pressure Switch Unloader
1/4 in Compression
Series
MDR3
Special Features
35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity, Narrow Differential
Standards
CSA and CE Certified, UL Listed
Temperature Range
-22 Degrees to 257 Degrees F
