P/N: 31GG3ENX Key Specs
Item

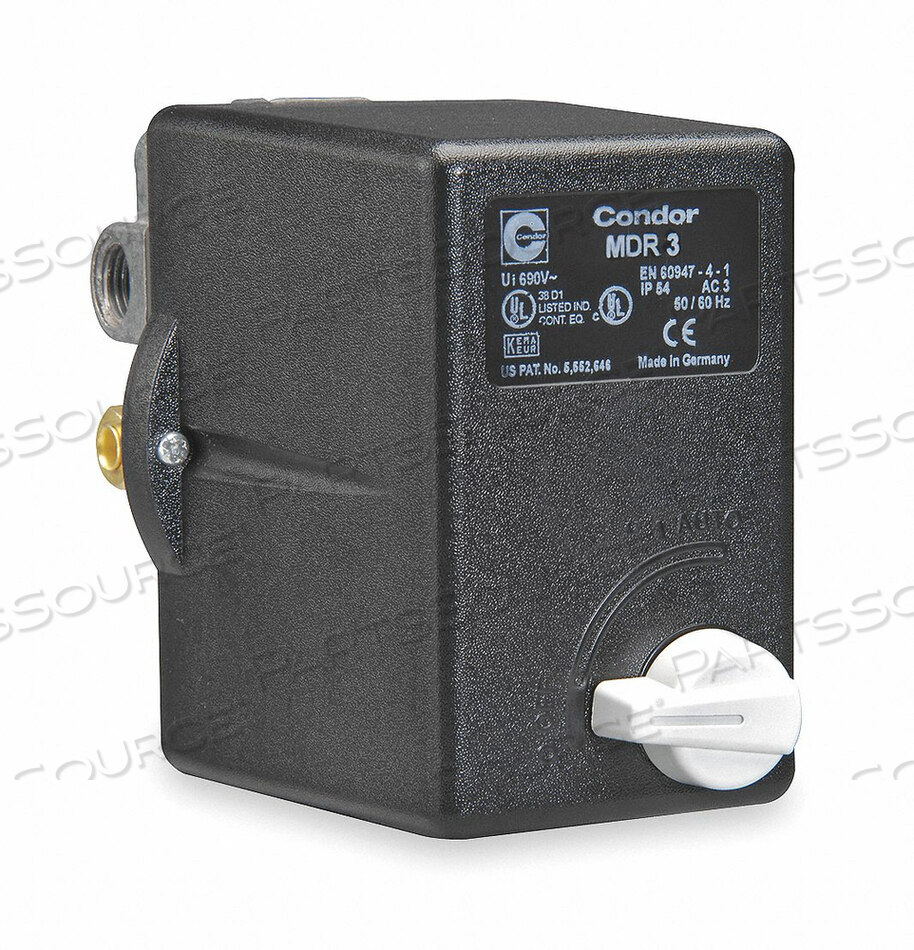

PRESSURE SWITCH DIAPHRGM 100/125PSI 3PST
OEM
Condor USA, Inc
OEM #
31GG3ENX
Condition
New OEM Original
Returnable
No
AC Contact Rating
30A
HP @ 1 Phase — 120V
1/8 hp
HP @ 1 Phase — 240V
1/3 hp
HP @ 3 Phase — 240V
1 hp
HP @ 3 Phase — 480V
2 hp
Manual Switch Action
Auto/Off/Reset
NEMA Rating
1
Overload Protection
2.5 to 4A
Phase
Single/Three
Pressure Switch Action
Standard
Pressure Switch Application
Air Compressor
Pressure Switch Differential
15 to 70 psi
Pressure Switch Electrical Contact Form
3PST
Pressure Switch Factory On/Off Setting
100/125 psi
Pressure Switch Port Type
(1) 3/8 in FNPT, (3) 1/4 in FNPT, (4) Port
Pressure Switch Range
45 to 160 psi
Pressure Switch Unloader
1/4 in Compression
Series
MDR3/OL
Special Features
35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity
Standards
CSA and CE Certified, UL Listed
Temperature Range
-22 Degrees to 257 Degrees F
