P/N: 3100D-4-FM-1-1 Key Specs
Item

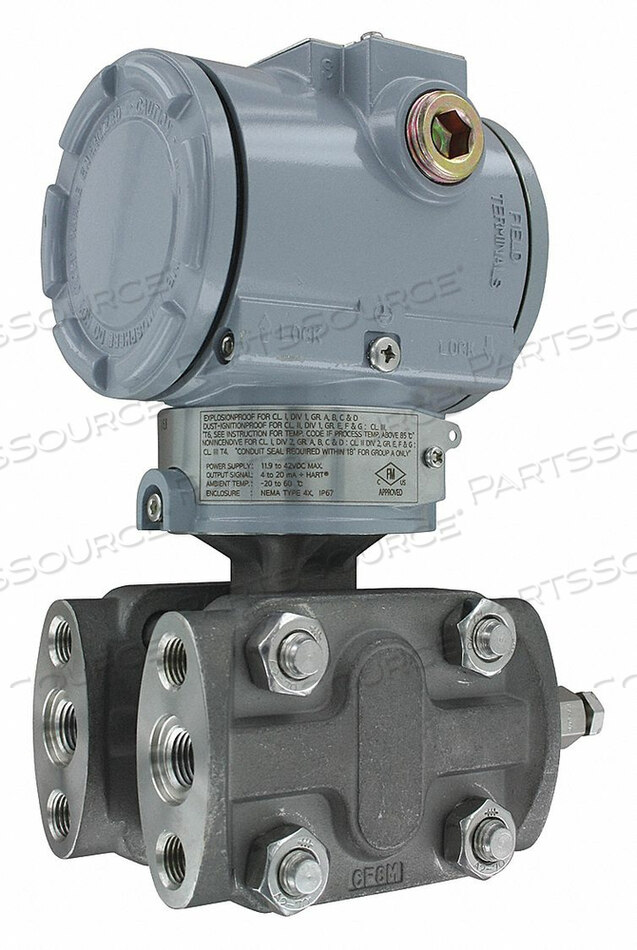

PRESSURE TRANSMITTER 0-750 IN W.C. FM CE
OEM
Mercoid
OEM #
3100D-4-FM-1-1
Condition
New OEM Original
Returnable
No
Accuracy — Transmitter
+/-0.075% Full Scale
Calibration Certificate
No
Compatible With
Clean Dry Non-corrosive Gasses
Electrical Connections — Transmitter
Screw Terminals
Housing
Epoxy Coated Aluminum
Includes
Instruction Manual
Loop Resistance
0 to 1500 ohms
Manufacturers Warranty Length
1 yr
Max Pressure (PSI)
2,000 psi
NEMA Rating
4X
Operating Temperature — Transmitter
-40 Degrees to 248 Degrees F
Output — Transmitter
4 to 20mA DC, HART Communication
Power Required — Transmitters
12 to 45V DC
Process Connection Size — Transmitter
1/4 in
Process Connection Type — Transmitter
FNPT
Range Units — Transmitter
in wc
Range Values — Transmitter
0 to 750
Safety Rating — Transmitter
Class I, Div. 1, Groups A, B, C, D
Thermal Error
+/-0.125% span/32 Degrees C
Transmitter Type
Differential Transmitter
Wetted Materials — Transmitters
316L Stainless Steel
